Den här guiden går igenom hur du ställer in Game Capture HD60 S+ med OBS Studio på macOS.
Krav
- Elgato Game Capture HD60 S+
- Apple Mac-dator
- macOS 10.13 eller senare installerat
- OBS Studio 27.2.2 eller senare installerat
Installationssteg

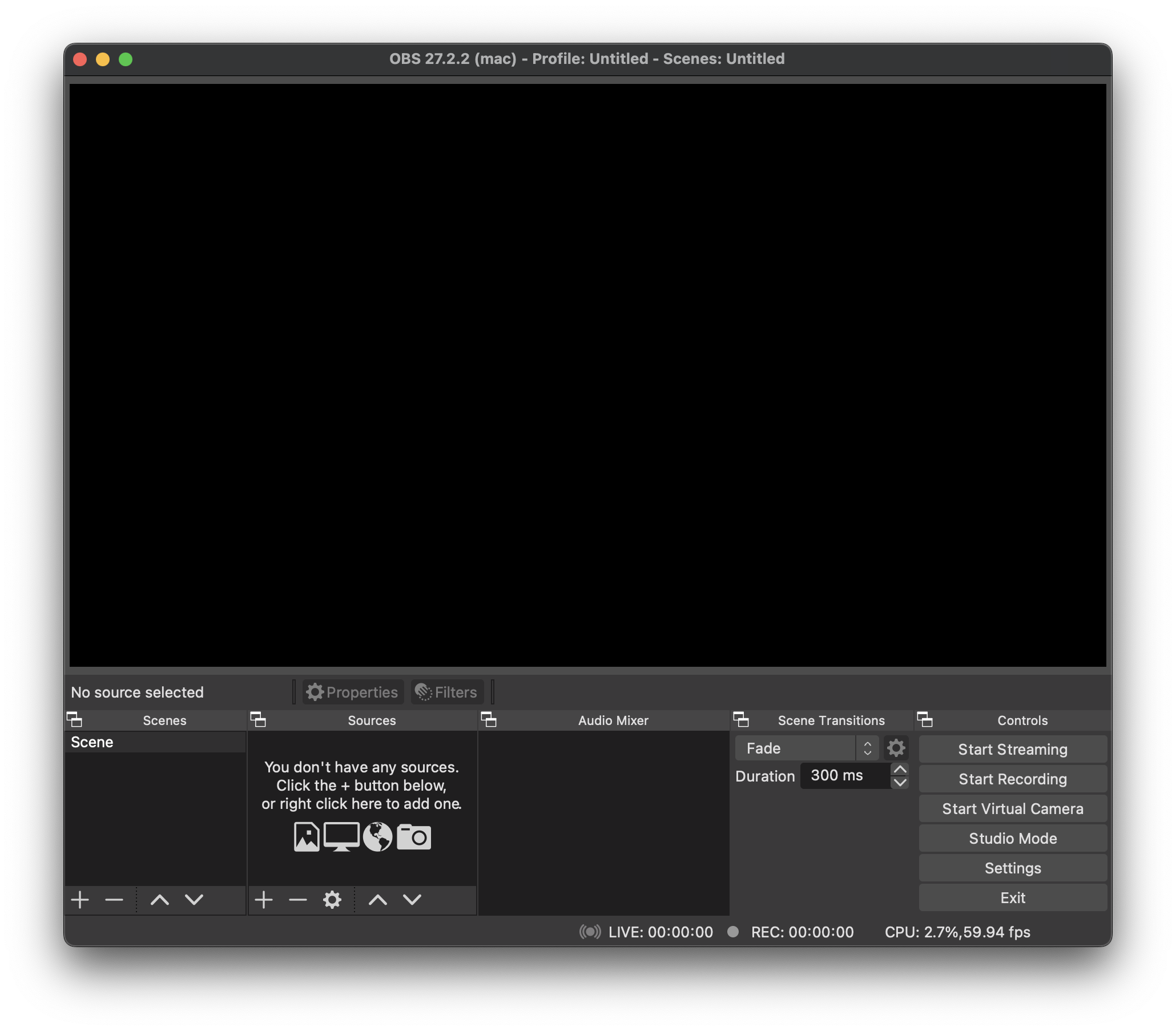

1) Öppna OBS Studio

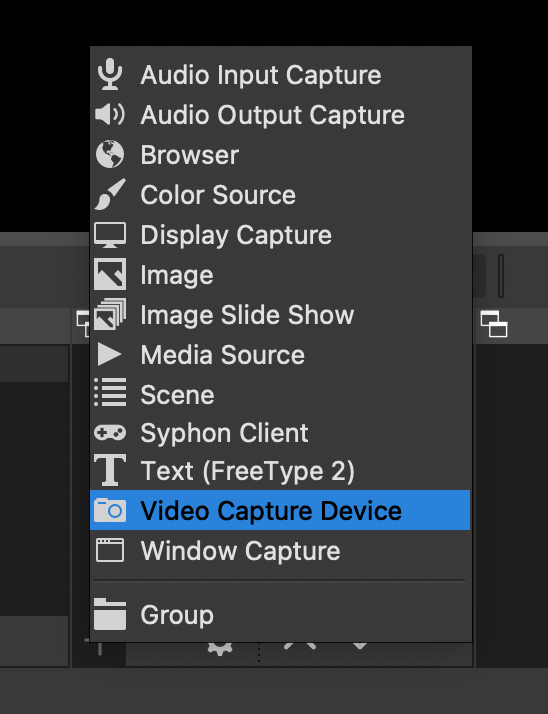

2) Klicka på +-ikonen i rutan Källor och välj Video Capture Device

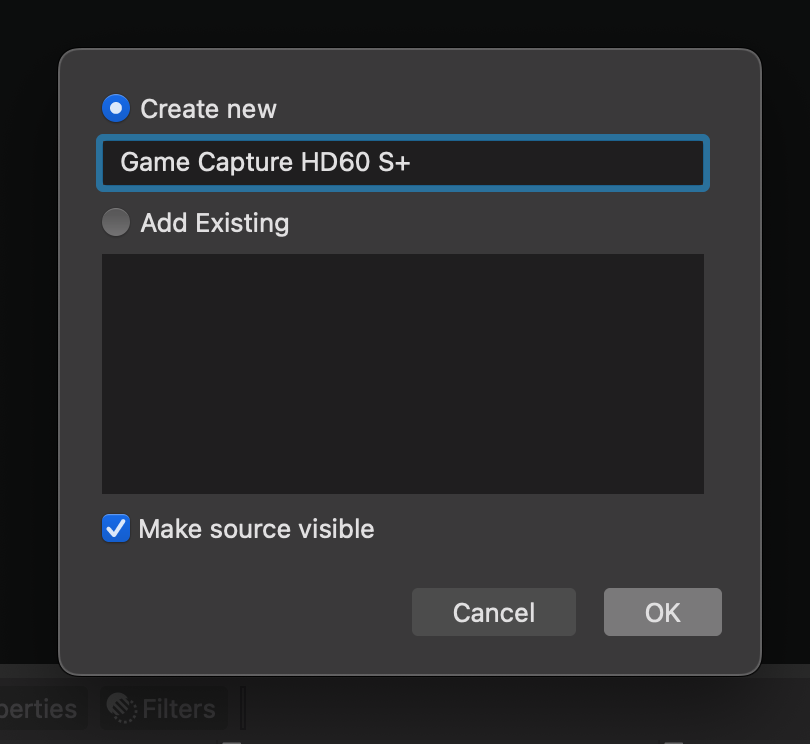

3) Ge källan ett namn, till exempel Game Capture HD60 S+, och klicka sedan på OK.

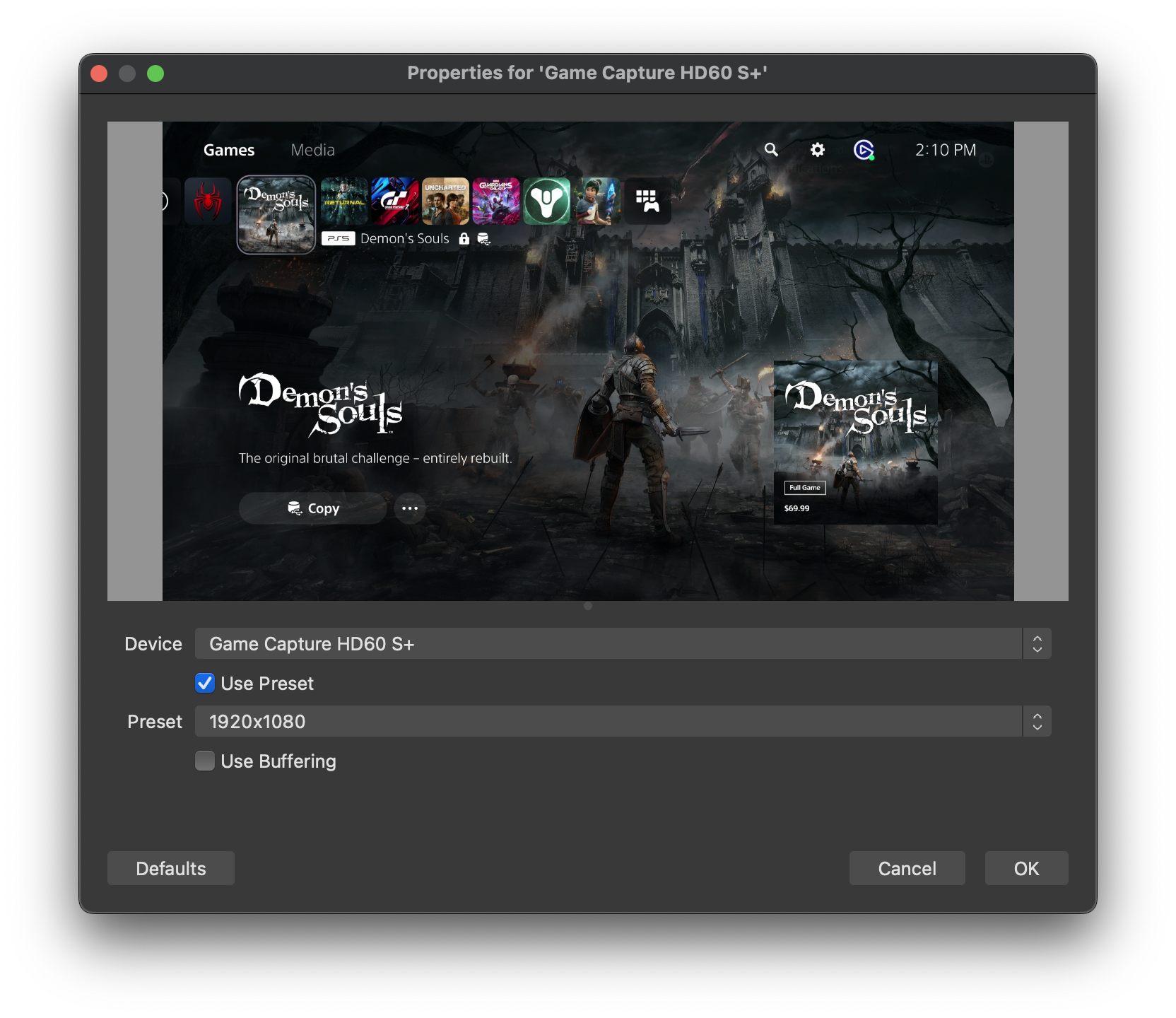

4) I fönstret Egenskaper för enhet väljer du Elgato Game Capture HD60 S+ från rullgardinsmenyn.
Välj 1920x1080 från förinställningsrullgardinen och klicka sedan på OK.
Video fångas nu in och du måste också fånga in ljud.

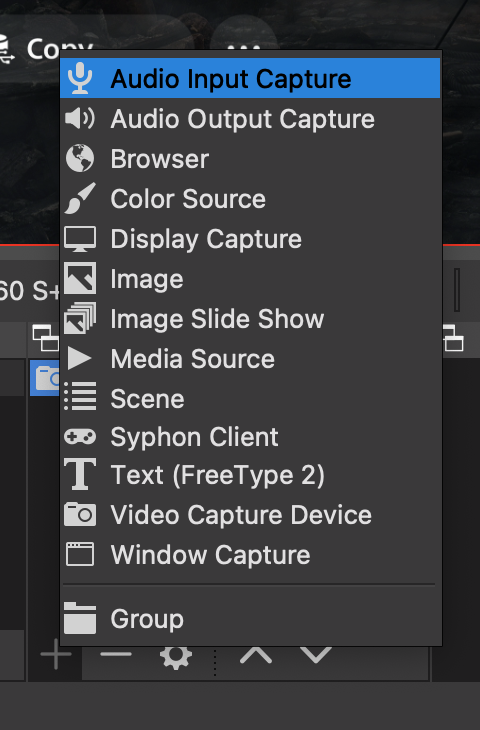

6) Klicka på +-ikonen i rutan Källor och välj Audio Input Capture

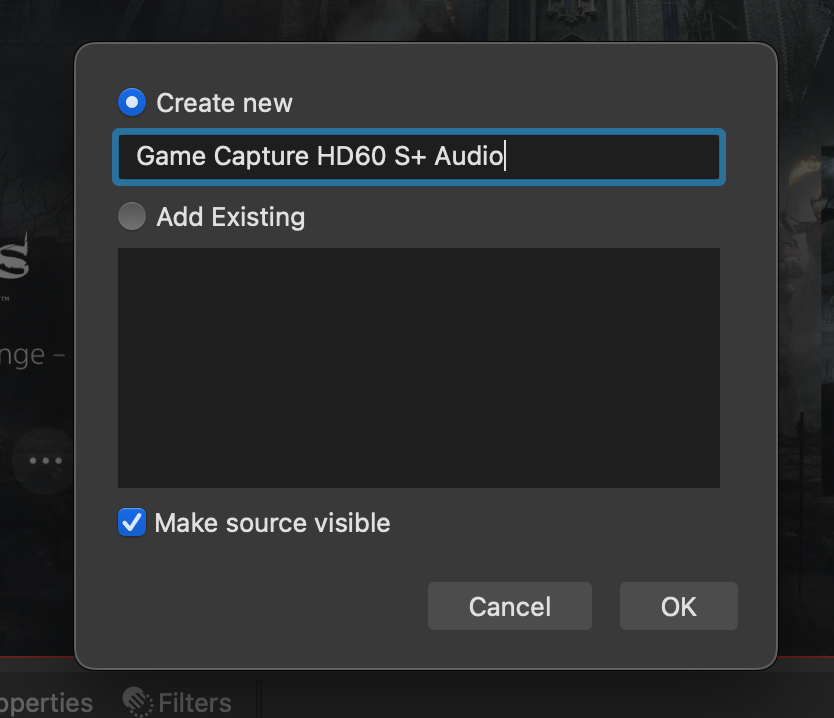

7) Ge källan ett namn, till exempel Game Capture HD60 S+ Audio, och klicka sedan på OK

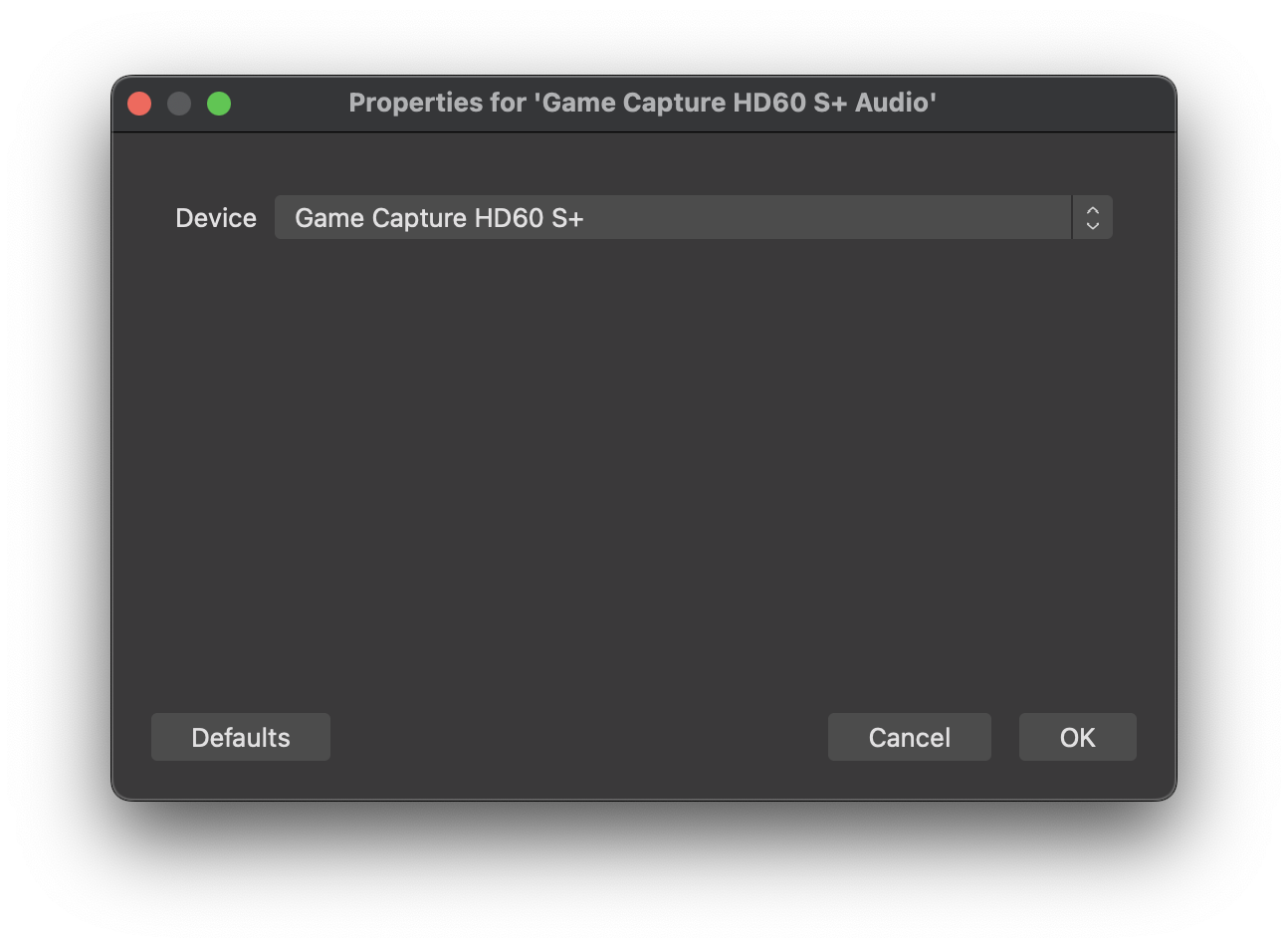

8) Välj Elgato Game Capture HD60 S+ i rullgardinsmenyn Enhet och klicka sedan på OK.

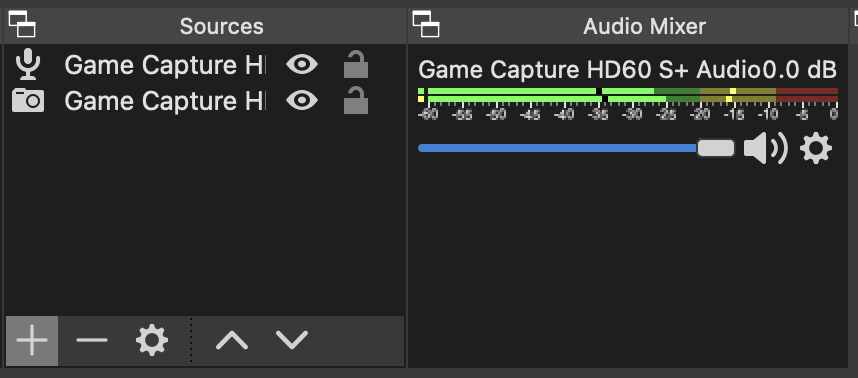

Video och ljud från Game Capture HD60 S+ fångas nu in i OBS Studio.
