This guide will go over how to set up XLR Dock for Stream Deck + for the first time.
Requirements
- Philips screwdriver
- Stream Deck +
- XLR Cable
- XLR Dock for Stream Deck +
- XLR Microphone
Setup Steps

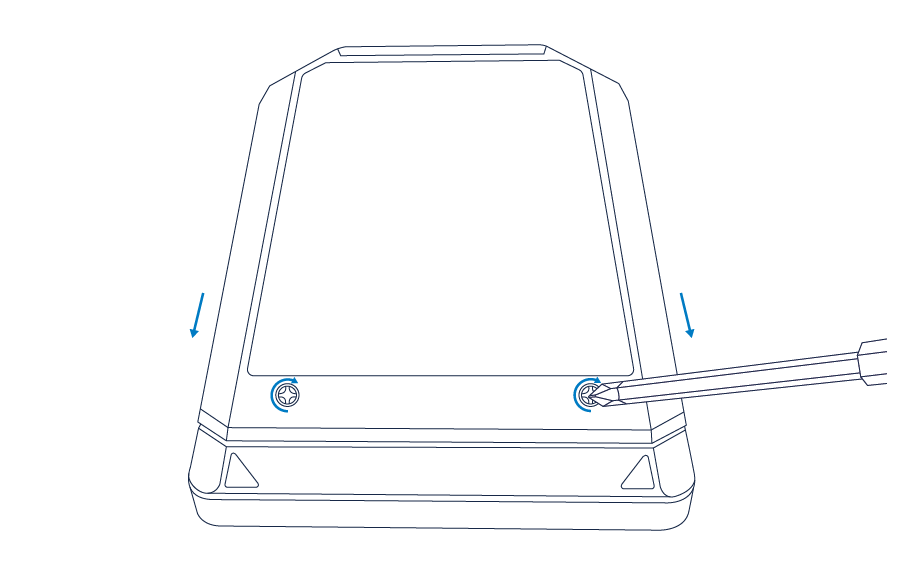

1) Use a Philips screwdriver (not included) to loosen the two screws and remove the pedestal from Stream Deck +.
2) Use the two screws to secure XLR Dock to Stream Deck +.
3) Connect your mic via a standard XLR microphone cable.
4) Download and install the Stream Deck and Wave Link apps.

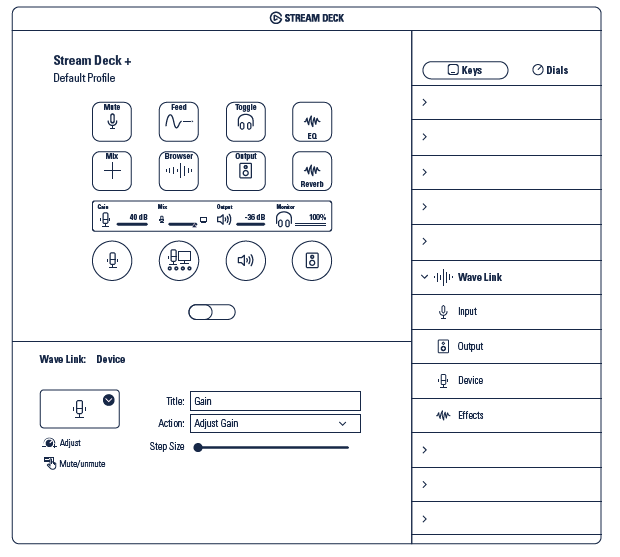

The Wave Link plugin allows you to set up a powerful audio mixer in the Stream Deck app.
Just drag Actions and Effects and drop them onto keys and dials in the Stream Deck app. Configure your actions and interface icons exactly the way you want.
