Elgato Stream Deck – Multi Actions

Assign as many actions as you want to a single key, and then activate them all with a tap. One by one separated by intervals. Or together, simultaneously.

Example: Start your stream, wait a minute, tweet you are live, welcome your chat, play your intro sequence, and unmute your mic - all with one key press.



Contents:


Multi Actions - Get Started


There are two ways to get started with a Multi Action.



1) Right-click a blank key on the canvas and select Multi Action.



2) Under the Multi Action section, drag Multi Action to a key.


Within a Multi Action, you can mix and match as many Actions as you like.

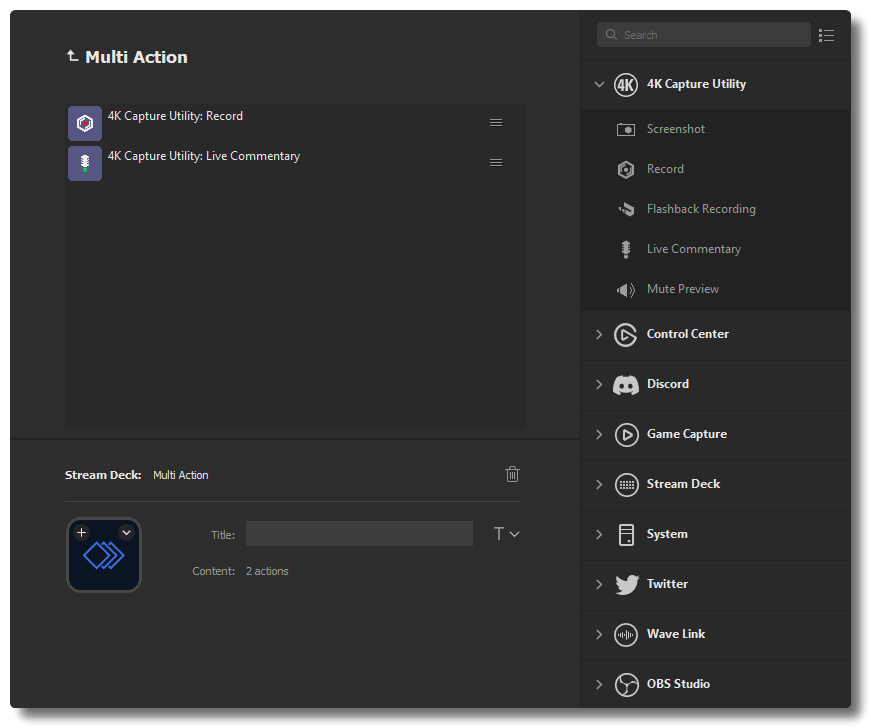

For example, you could tell Elgato 4K Capture Utility software to do the following:

• Start Recording
• Start Live Commentary


Please Note:  You cannot nest a Multi Action within another Multi Action.


Multi Actions - Delays



Delays are quite helpful when constructing Multi Actions.

Go to the Multi Action section of the Actions List, and choose Delay. Drag it to your open Multi Action window.

You can choose as many Delays as you want. They are measured in milliseconds (1/1000 of a second).

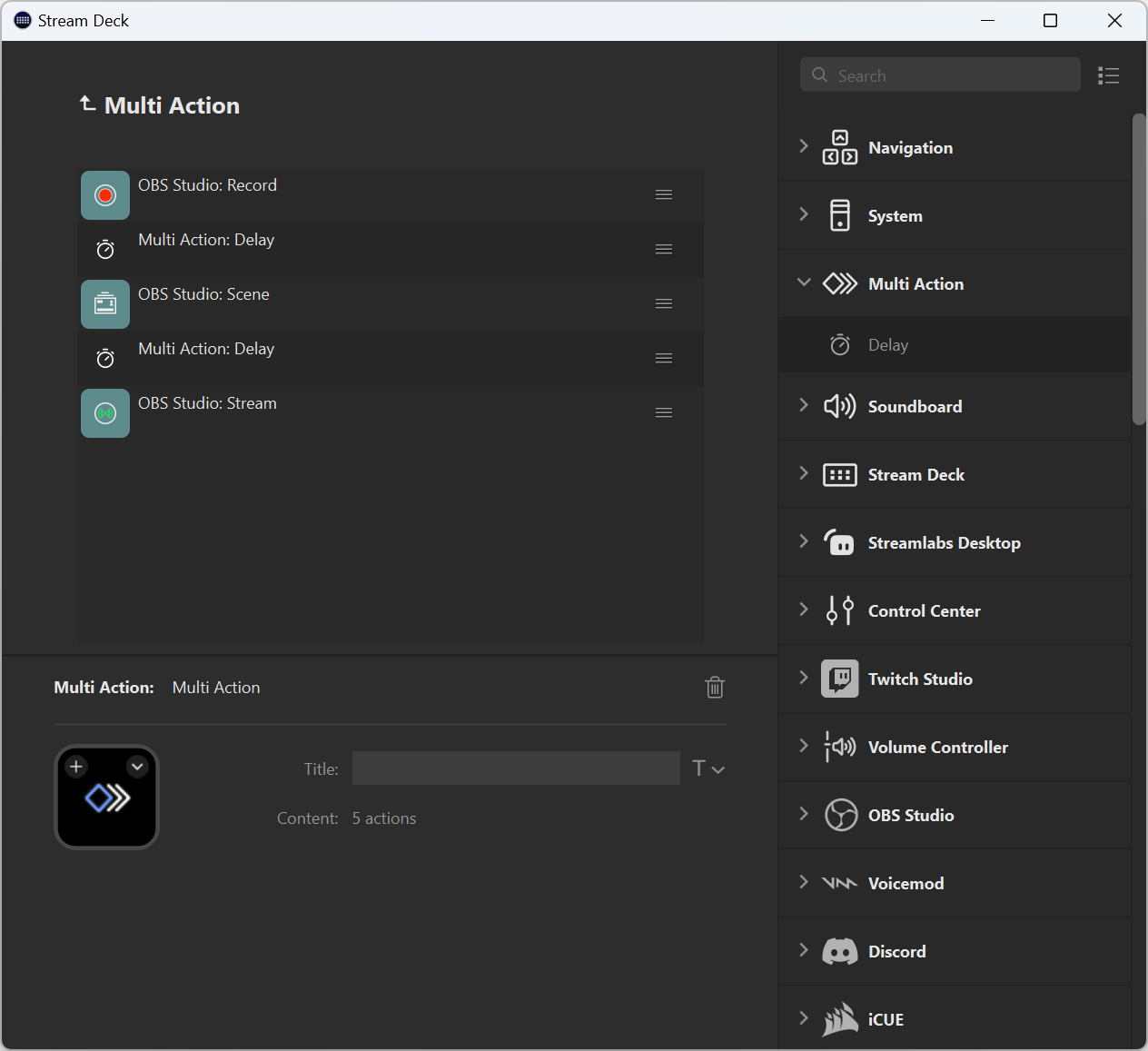

For example, you could tell OBS Studio to do the following:

• Start Recording
• Delay for 1 Second (1000 ms)
• Switch to a Scene
• Delay for 1 Second (1000 ms)
• Start Stream



Multi Actions - Customizable Multi Action Delays



Stream Deck 5.3 introduced Customizable Multi Action delays. Previously, Multi Actions had a built-in delay of 200ms between actions, but now can be adjusted between 2ms to 200ms.

For more information, check out Elgato Stream Deck — Customizable Multi Action Delays.




Advanced Multi Actions




If any assistance is needed, feel free to contact us through the widget at the right.
