Elgato Master Mount L — General Info and Quick Start Guide




Shown in the above photo are the Elgato Master Mount L and other Elgato accessories, like Elgato Multi Mount Flex Arm Kit and Elgato Key Light, each sold separately.




Elgato Master Mount L









Here is some general information about Elgato Master Mount L:



Minimum Height

55 cm / 22 in



Maximum Height

125 cm / 49 in



Maximum Load

2 kg / 4.5 lbs



Ball Head

1/4" Screw



Desk Clamp

Expandable to 6 cm / 2.35 in



Materials

Steel, Hard Composite, Tough Rubber






Elgato Master Mount L - Tightening




A non-slip rubber washer is included for mounting a camera, camcorder, etc.

DO NOT OVERTIGHTEN.

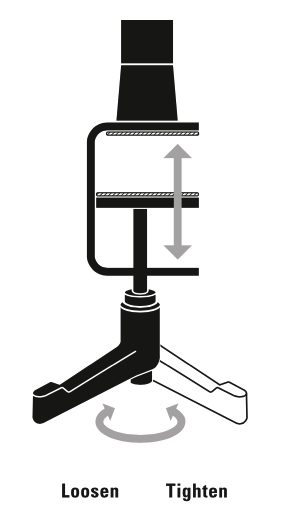

The clamp is padded and expandable up to 6 cm / 2.35 in.

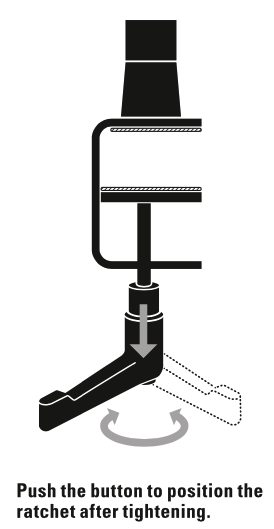

Push the button to position the ratchet after tightening.







Elgato Master Mount L - Warnings




It is normal for the pole to wobble when fully extended.

DO NOT OVERTIGHTEN.



Warnings:

• Be especially cautious when setting up near children.

• Do not attach items to the pole.

• Do not leave the product exposed to direct sunlight.

• Do not set up in areas susceptible to strong air currents.  Drafts and breezes can cause movement that may result in damage to the product.

• Keep the pole free from dirt and dust.  If the product becomes dirty, wipe it lightly with a soft cloth moistened with a little water and mild, neutral detergent.  Benzene, thinner, and other volatile agents can cause permanent damage and should never be used for cleaning.

• Always mount the pole to a level, stable surface.  Uneven or unstable surfaces may cause tipping and result in damage or personal injury.

• Do not use the pole for applications other than those specified in this guide or the packaging.
