This guide will go over the Wave XLR settings in Wave Link.

• General
• Device Input
• Headphone Jack
• Audio Enhancements
• Color Settings
• Save Settings To Hardware

Wave XLR Settings

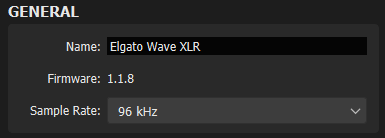

General

Name

• Rename Wave XLR in Wave Link. This does not affect the device name outside of Wave Link.

Firmware

• Displays the current firmware and if a firmware update is available.

Sample Rate

• Select between 48kHz or 96kHz sample rate mode.
• Learn more about switching sample rate

Device Input

Input level

• A real-time display of the sound level from the microphone into Wave XLR.

Input gain

• Use the input gain slider to adjust the gain of the microphone up to 75dB.
• The recommended gain ranges are shown for condenser and dynamic microphones.
  • Condenser: 0-30dB
  • Dynamic: 30-75dB

48V Phantom Power

• Enable 48V Phantom power for condenser microphones.
• Disable 48V Phantom power for dynamic microphones.

⚠ Enabling phantom power for dynamic microphones can damage the microphone capsule.

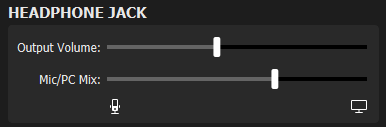

Headphone Jack

Output Volume

• Change the output volume of the headphone port.

Mic/PC Mix

• Change the balance between microphone audio and computer audio that is played through the onboard headphone port.
  • To listen to sound exclusively from the PC, set the slider to the right.
  • To listen to zero-latency monitoring (your own voice) exclusively, set the slider to the left.

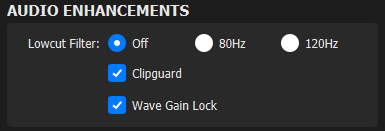

Audio Enhancements

Lowcut Filter

• Remove potentially unwanted low-frequency noises that can overpower the audio mix. These frequencies can sometimes come from vibrations in your desk or mic arm or nearby vehicles.
  • Off - Leave the microphone sound unaffected.
  • 80Hz - Use this setting when speaking into the microphone from a close distance.
  • 120Hz - Use this setting when speaking into the microphone from a medium to far distance.

Clipguard

• Make clipping virtually impossible by keeping Clipguard enabled.
• We recommend keeping this enabled.

Wave Gain Lock

• Prevents programs from changing the gain of Wave XLR through methods such as automatic gain control (AGC).
• We recommend keeping this option enabled.

Color Settings

General Color

• The color of the LED ring when Wave XLR is not muted.

Mute Color

• The color of the LED ring when Wave XLR is muted via the capacitive button.

Save Settings To Hardware

Click on Save Settings To Hardware to save all current settings onto Wave XLR's built-in memory.
