Elgato Stream Deck MK.2 — Interchangeable Faceplate

The Faceplate on Stream Deck MK.2 can be removed and replaced with a customized Faceplate.



Note: Stream Deck Scissor Keys uses a different faceplace design than Stream Deck MK.2. The faceplates are not interchangeable between both devices. Scissor Keys has some physical differences.




Steps to remove Stream Deck MK.2 Faceplate

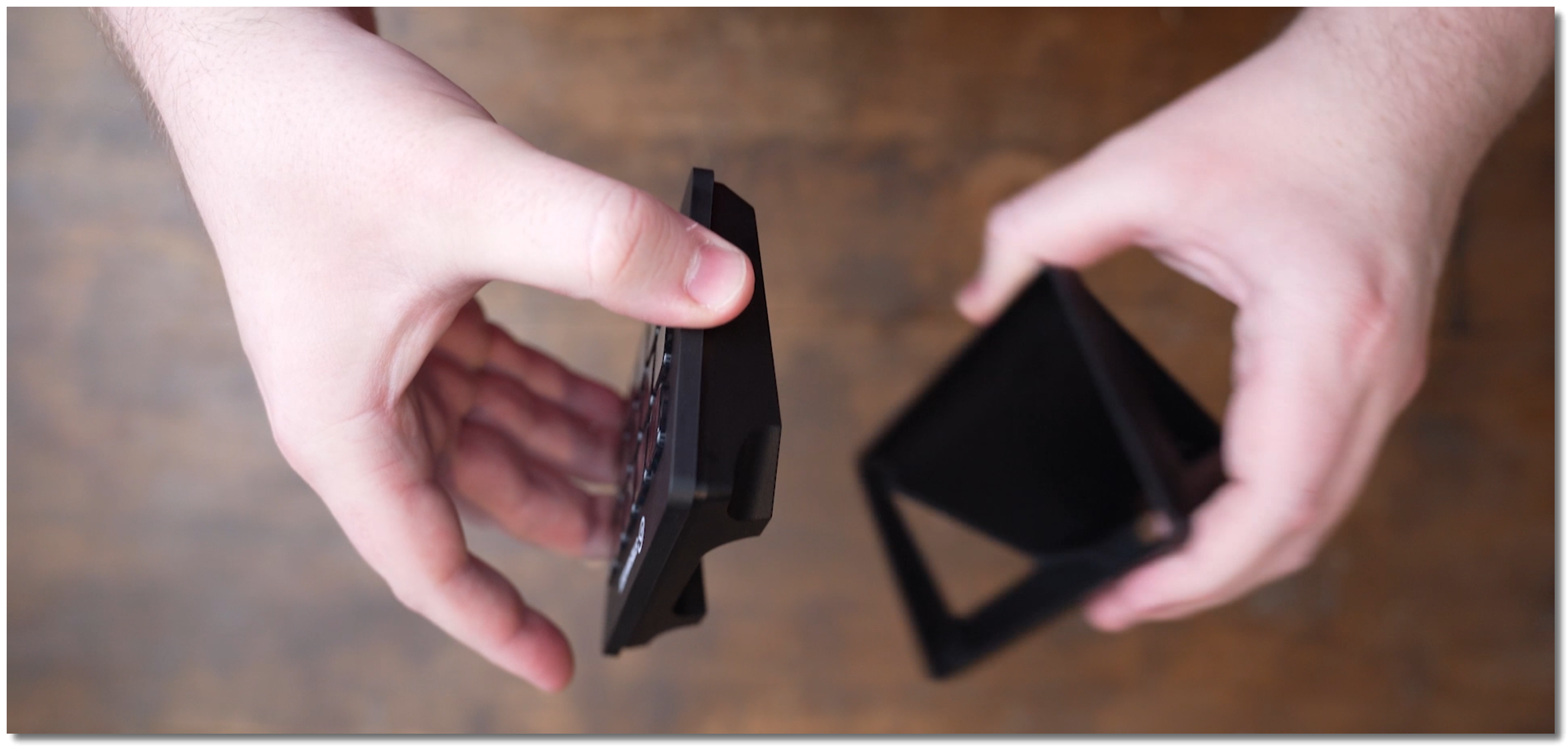

1) Start by removing unplugging the USB-C cable and taking Stream Deck MK.2 off of the stand.

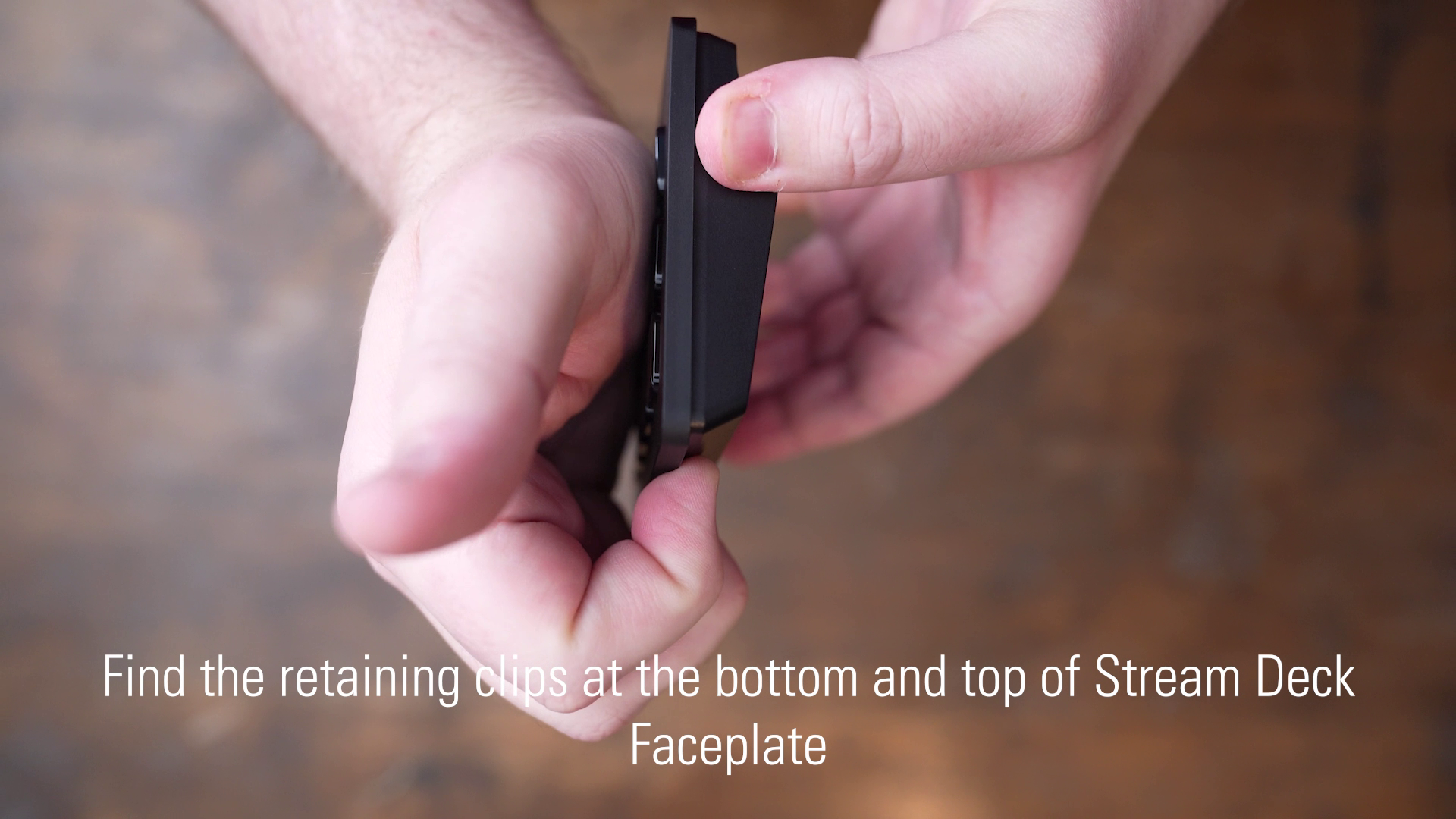

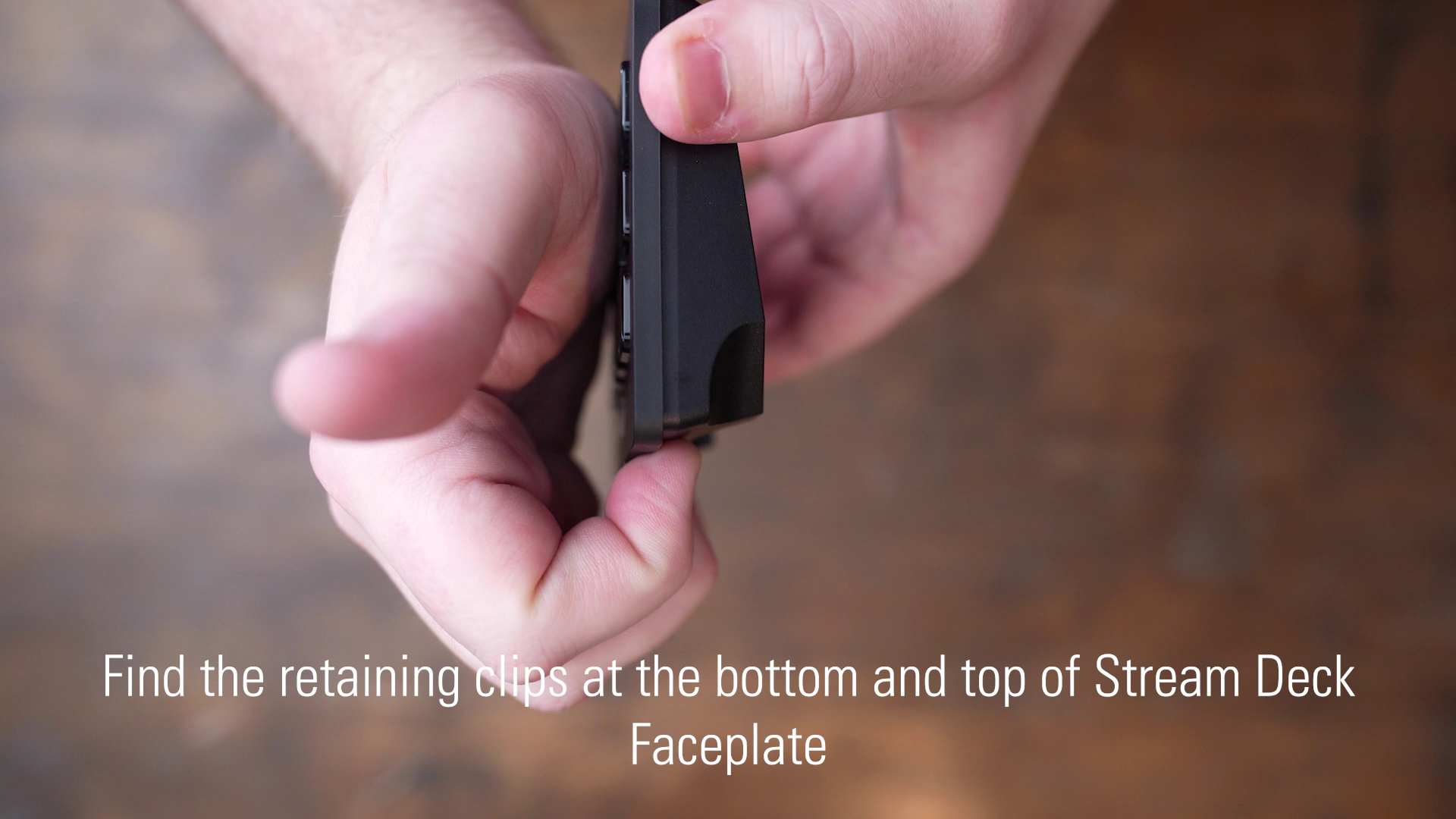

2) Holding Stream Deck MK.2 in one hand, rest the palm of your hand on the keys.



Top




Bottom

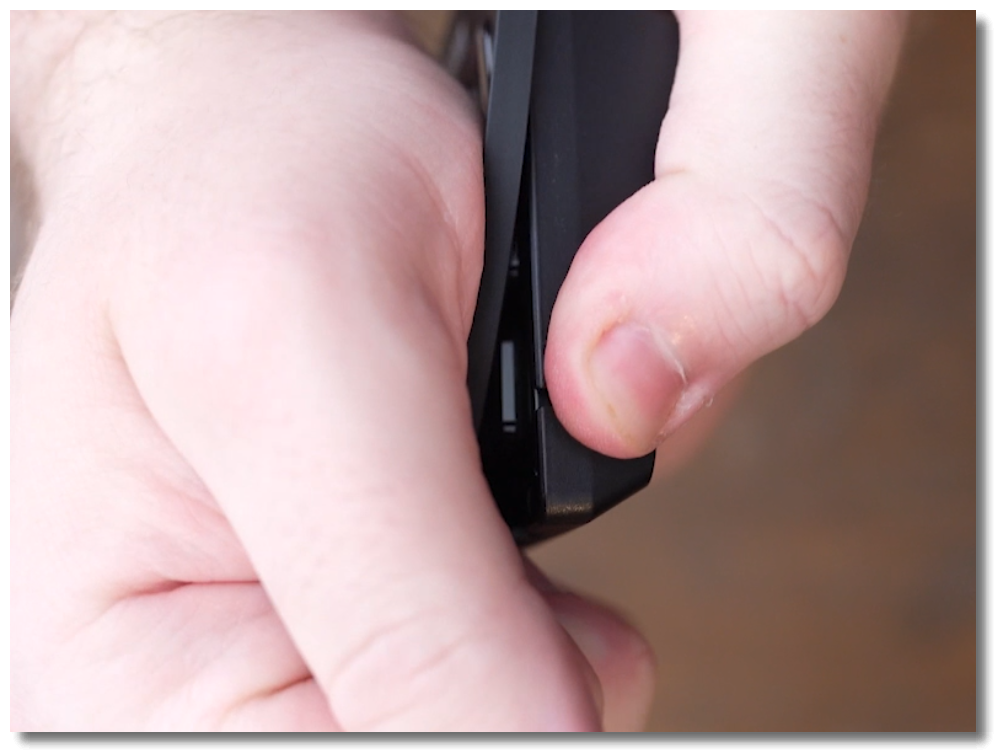

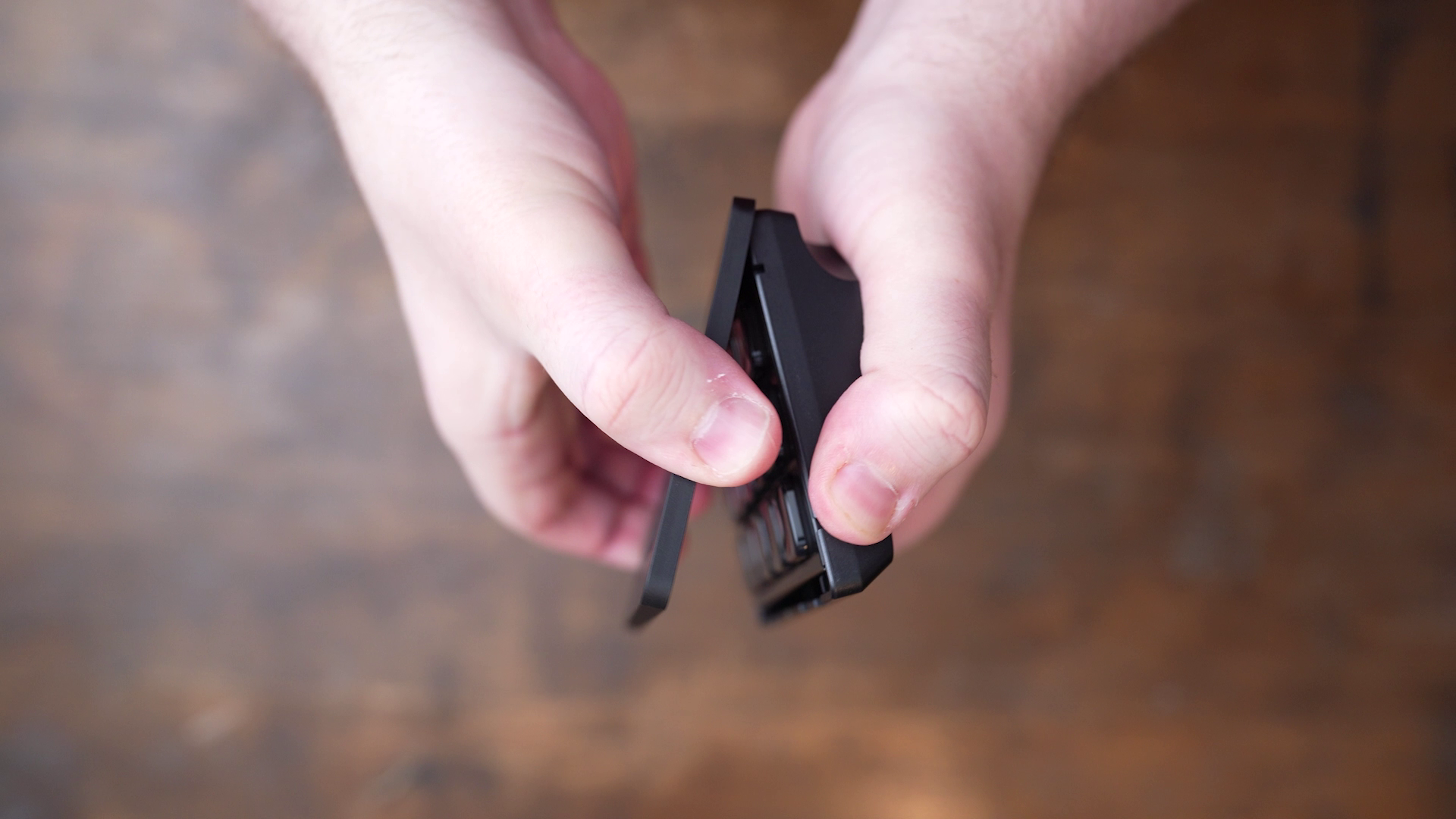

3) Use the tips of your fingers to pry one corner off of the Stream Deck MK.2.

⚠ An audible snap may be heard.


4) Repeat on the second corner



5) Once both corners are loose, carefully pull the Faceplate off of Stream deck MK.2

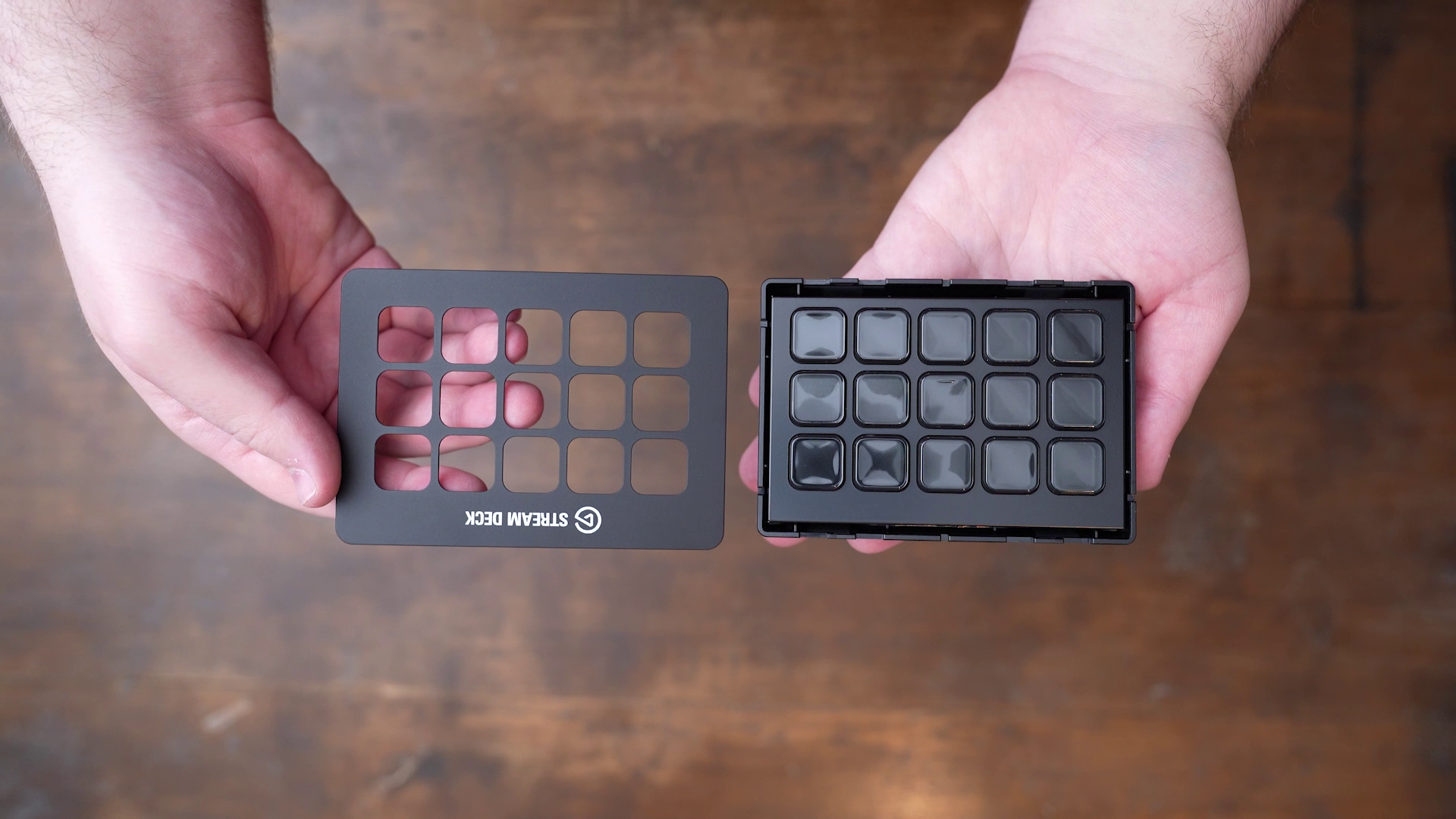

6) The Faceplate has now been removed and a new Faceplate can be snapped on.




If any assistance is needed, feel free to contact us through the widget at the right.
