Elgato Stream Deck Pedal — Quick Start Guide

This guide will cover the Quick Start Guide for Elgato Stream Deck Pedal.

Contents

• Requirements

• Software Setup

• Adjust Pedal Pressure

• Adjust Power LED Color

Set Up Video

Requirements

• Stream Deck Pedal

• Stream Deck Software 5.2 or newer

  • Download: https://www.elgato.com/s/downloads

• USB-C cable

  • USB-C to USB-A is Included with Stream Deck Pedal

• System Requirements
  • • macOS 10.13 or newer / Windows 10 (64-bit)



Software Setup

1 ) Download and install Stream Deck software from elgato.com/download

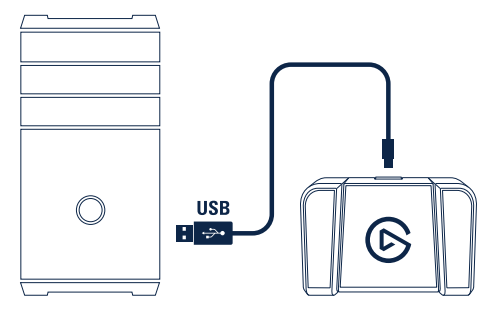

2 ) Connect Stream Deck Pedal directly to a USB port on your PC or Mac.

⚠ USB hubs and USB extension cables are not supported. The use of these can cause unforeseen issues.

Adjust Pedal Pressure

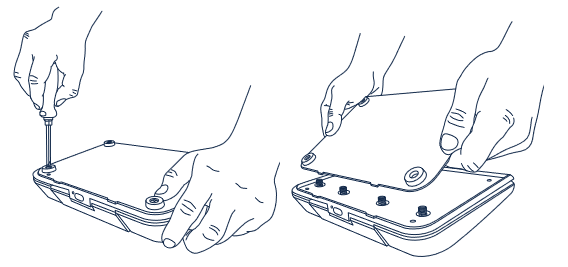

1 ) Loosen four screws with a Phillips head screwdriver.

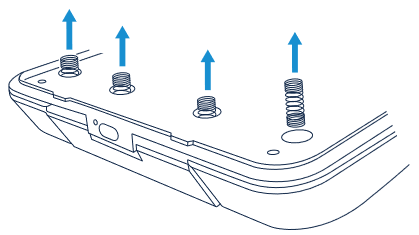

2 ) Adjust pedal pressure with the included spring tension sets.

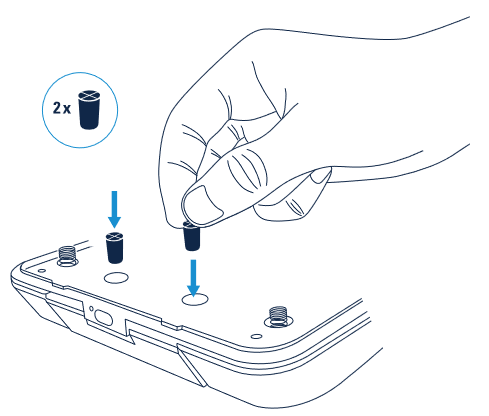

3 ) Stream Deck Pedal can also be used as a Footrest. Lock the middle pedal with the included stoppers to convert it into a convenient footrest.

For More Information: Adjusting Pedals Sensitivity

Adjust Power LED

Stream Deck Pedal has a customizable power LED that be turned off or have the color adjusted.

1 ) Open Stream Deck Software

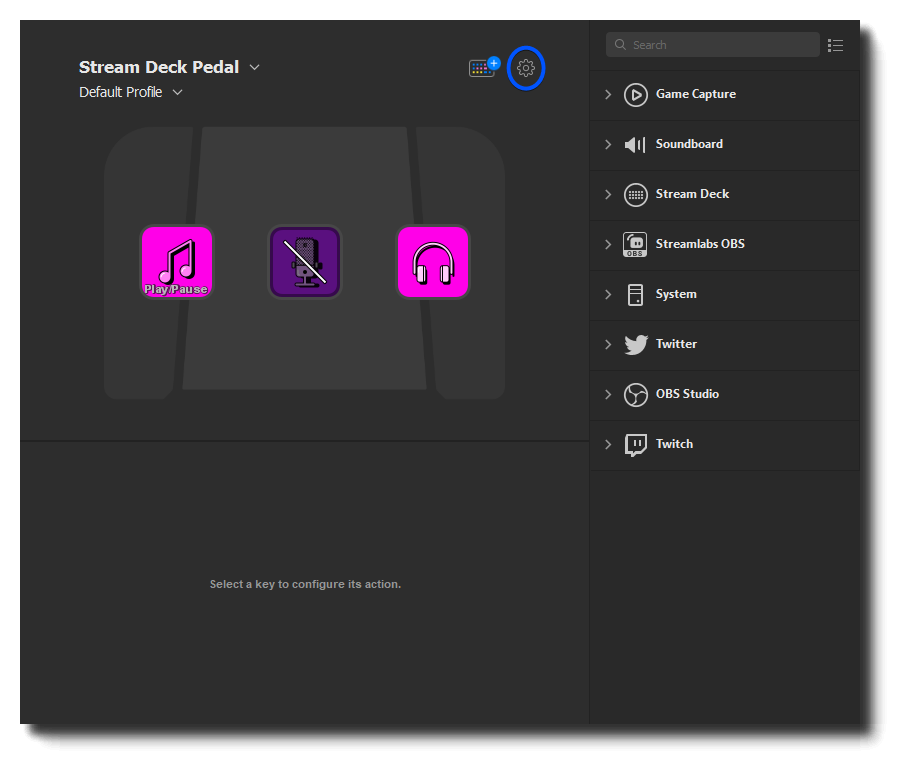

2 ) Click Preference

2 ) if you have multiple Stream Decks or Stream Deck Mobile, click the drop menu and select Stream Deck Pedal.

3 ) Near LED click Color... *

* The LED can be set to Always On or Always Off.

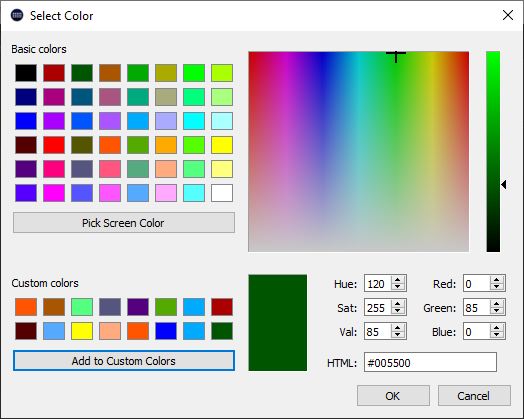

3 ) A Select Color window will appear. Select the desired color and click OK to apply*.

*This window allows you to enter HTML values, pick screen color or save custom colors.
