This guide will cover adjusting the interchangeable tension springs (or a Footrest) with Stream Deck Pedal.
Contents
Stream Deck Pedal can be customized to fit your needs with included adjustable springs/spacers - these accessories adjust the pressure so you can use more or less force to press down on your different pedals.
Interchangeable Tension Springs

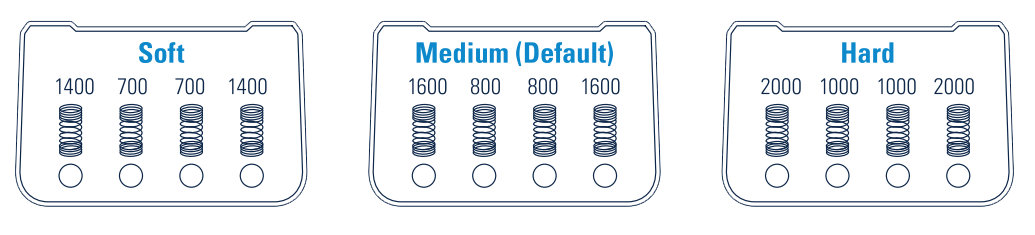

Stream Deck Pedal includes three sets of tension springs and a spacer. The three sets of tension springs range from Soft, Medium (Default), and Hard. Soft will have less resistance while pressing the pedals, while Hard will add more resistance.
Adjust Pedal Pressure
1 ) Loosen four screws with a Phillips head screwdriver.

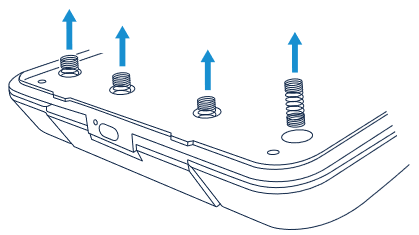

2 ) Adjust pedal pressure with the included spring tension sets.
3 ) Now reattach the backplate.
Use the Middle Pedal as a Footrest
You can use the middle pedal as a convenient footrest. Keep in mind that this means the pedal will not move and cannot be pressed.
1 ) Following the same steps above to adjust the pedal pressure.
2 ) Remove the backplate.

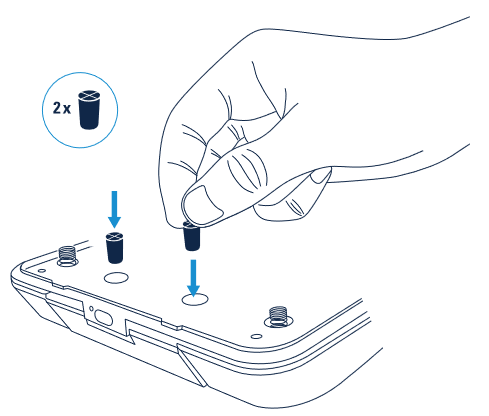

3 ) Remove the two springs from the middle pedal and insert the pedal stoppers
4 ) Now reattach the backplate.
Elgato Customer Support
Please contact our customer support team for additional support by going to https://e.lga.to/help.
