我如何安装 Thunderbolt™ 3 Dock 实用程序?

The Elgato Thunderbolt™ 3 Dockcan work as soon as you plug it into your Mac's Thunderboltport, but to get the best utilization of its features, you'll need to install the Elgato Thunderbolt Dock Utilityfrom Elgato.


下载 Elgato Thunderbolt Dock 软件安装程序



您可以从以下位置下载 Thunderbolt Dock 软件安装程序:

macOS El Capitan 10.11 或更高版本 - 版本 1.2.9
https://update.elgato.com/mac/thunderbolt-dock-update/download.php

Mac OS X 10.11 El Capitan
Elgato_Thunderbolt_Dock_Software_112_114_1011.pkg

Mac OS X 10.10 及更低版本
Elgato_Thunderbolt_Dock_Software_112_114.pkg


安装 Elgato Thunderbolt™ Dock Utility




Elgato Thunderbolt Dock 软件安装程序将安装 Elgato Thunderbolt 内核扩展和 Elgato Thunderbolt Dock Utility应用程序。

Elgato Thunderbolt 内核扩展可启用 iPad 充电、Apple SuperDrive 和 Apple 键盘支持。

Elgato Thunderbolt Dock Utility是一个菜单栏项目,使您能够弹出连接到坞站的所有驱动器,以便您可以安全地拔下它。

双击 Elgato_Thunderbolt_Dock_Software_1.0.pkg以启动 Elgato Thunderbolt Dock 软件安装程序。

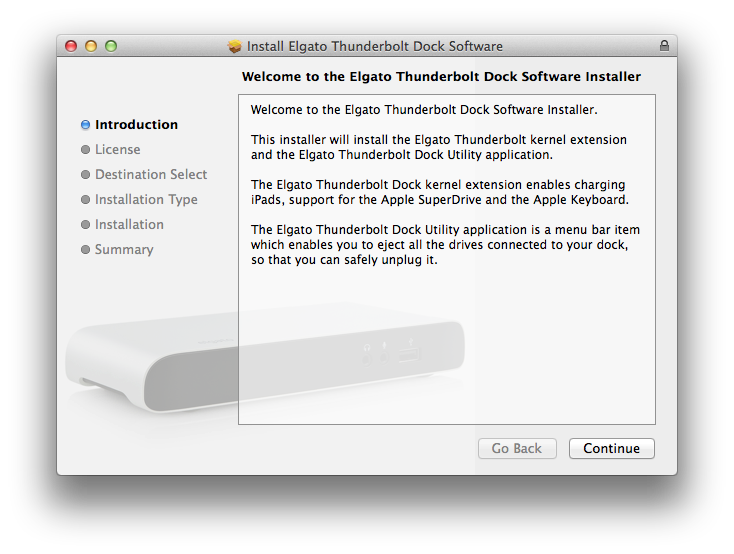

按 Continue开始安装过程。

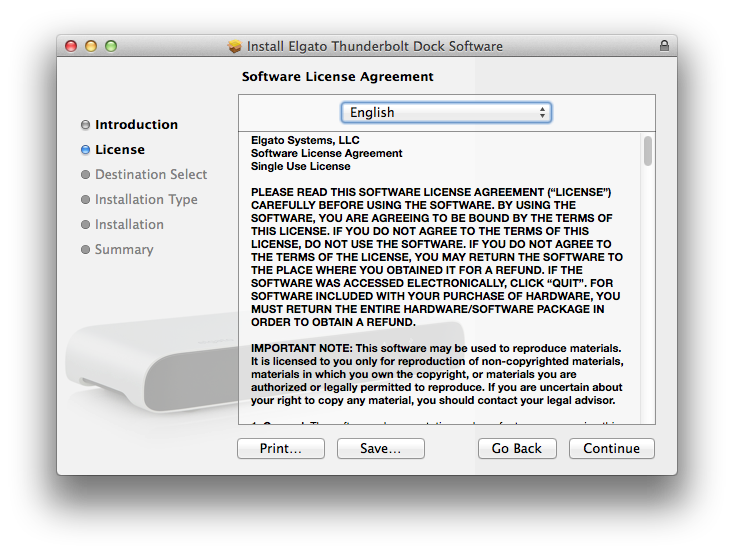

按 Continue以同意软件许可协议。

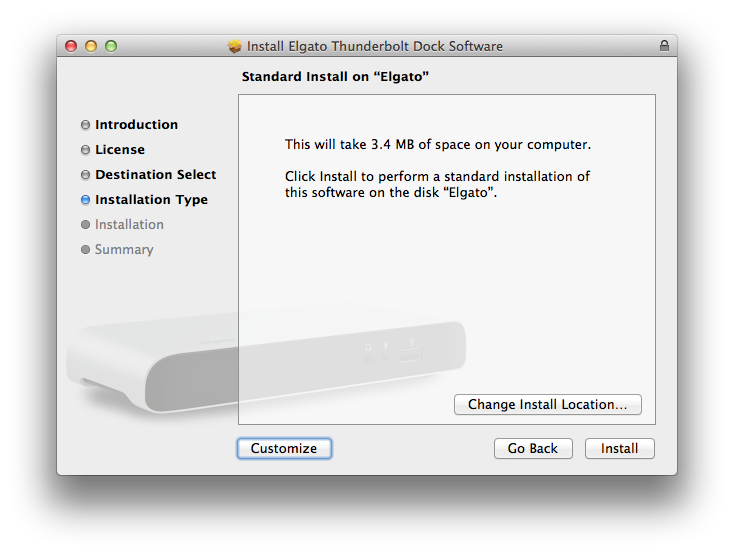

安装将在您的计算机上占用 3.4 MB 的空间。按 Install按钮后立即开始。

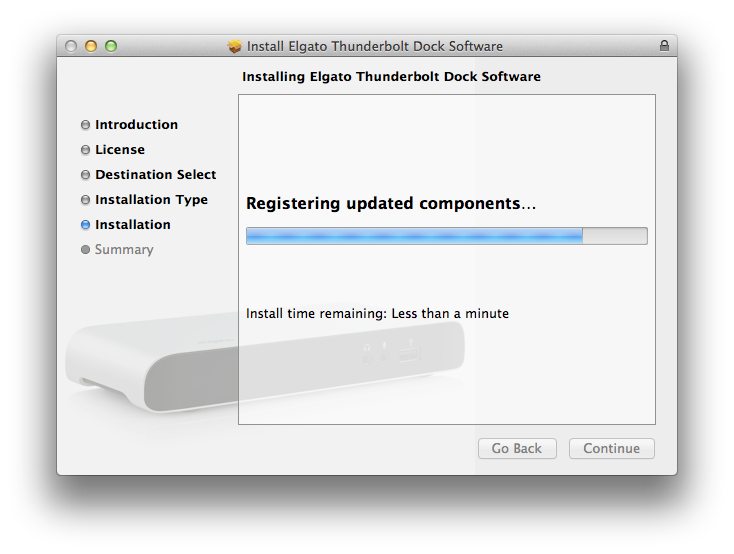

安装程序将复制并注册必要的文件,这大约需要一分钟。

安装过程完成后,您的计算机将重新启动。


使用 Elgato Thunderbolt™ Dock Utility

安装后,您可以从菜单栏访问 Elgato Thunderbolt Dock Utility。其图标是小写字母"e"。


此菜单将在顶部显示三个选项:

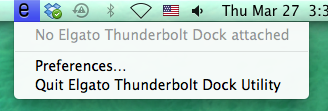

1) 未连接 Elgato Thunderbolt Dock

当 Elgato Thunderbolt 3 Dock未物理连接时出现。


2) 断开 Elgato Thunderbolt Dock

当 Elgato Thunderbolt 3 Dock完全连接并被检测到时出现。如果您选择此选项,连接到坞站的驱动器将被弹出。然后您可以从计算机物理断开坞站。


3) Elgato Thunderbolt Dock 可安全断开连接

在 Elgato Thunderbolt 3 Dock和连接到它的设备卸载后出现。您现在可以从 Mac 物理移除 Thunderbolt电缆。

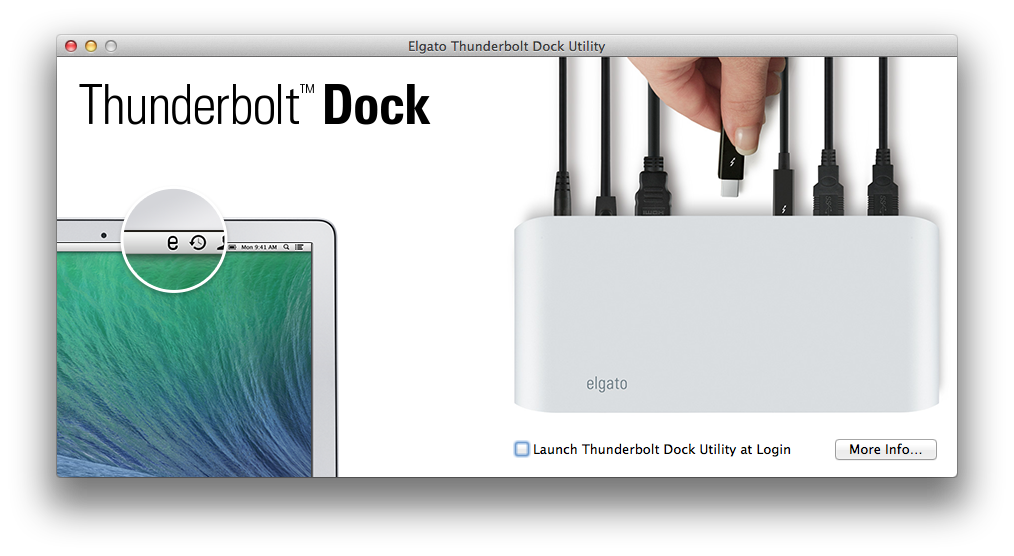

如果您选择 Preferences...选项,将弹出 Elgato Thunderbolt Dock Utility的主窗口。


在这里您可以选择 Launch Thunderbolt Dock Utility at Login。
