Elgato Stream Deck Studio — Technical Specifications

Here are the technical specifications for Stream Deck Studio.



Technical Specifications


Keys

32 x customizable LCD keys

Dials

2 x 360° encoders with push function, LED indicator, and LED ring

  •

NFC Support*

Integrated NFC for additional functionality. *Requires a Bitfocus Button subscription.

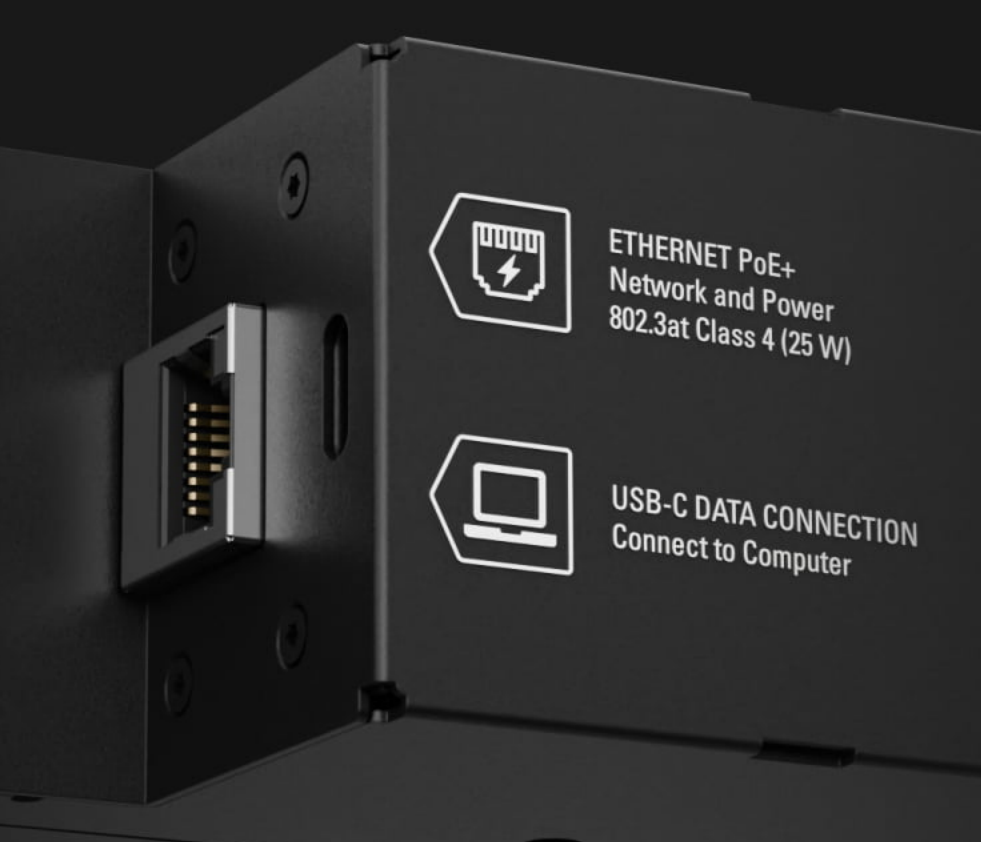

Interface

RJ45 Ethernet PoE+ (100 Mb/s)

USB-C



Power

RJ45 Ethernet PoE+ (802.3at Class 4)

USB-C PD 3.0 (9 V, 3 A) not included

Power Consumption: Up to 15 W

Rack Compatibility

Standard 19" rack (1U)
