How do I install the Thunderbolt™ 3 Dock Utility?

Updated June 18, 2026 22:38

The following article is for a product that is now considered Legacy (EOL) status. Because of this, the information below may not match what is possible with current Elgato hardware and software.

The Elgato Thunderbolt™ 3 Dock can work as soon as you plug it into your Mac's Thunderbolt port, but to get the best utilization of its features, you'll need to install the Elgato Thunderbolt Dock Utility from Elgato.

Downloading the Elgato Thunderbolt Dock Software Installer

You can download the Thunderbolt Dock Software Installer from here:

macOS El Capitan 10.11 or later - version 1.2.9
https://update.elgato.com/mac/thunderbolt-dock-update/download.php

Mac OS X 10.11 El Capitan
Elgato_Thunderbolt_Dock_Software_112_114_1011.pkg

Mac OS X 10.10 and lower
Elgato_Thunderbolt_Dock_Software_112_114.pkg

Installing the Elgato Thunderbolt™ Dock Utility

The Elgato Thunderbolt Dock Software Installer will install the Elgato Thunderbolt kernel extension and the Elgato Thunderbolt Dock Utility application.

The Elgato Thunderbolt kernel extension enables charging iPads, support for the Apple SuperDrive and the Apple Keyboard.

The Elgato Thunderbolt Dock Utility is a menu bar item which enables you to eject all the drives connected to your dock, so that you can safely unplug it.

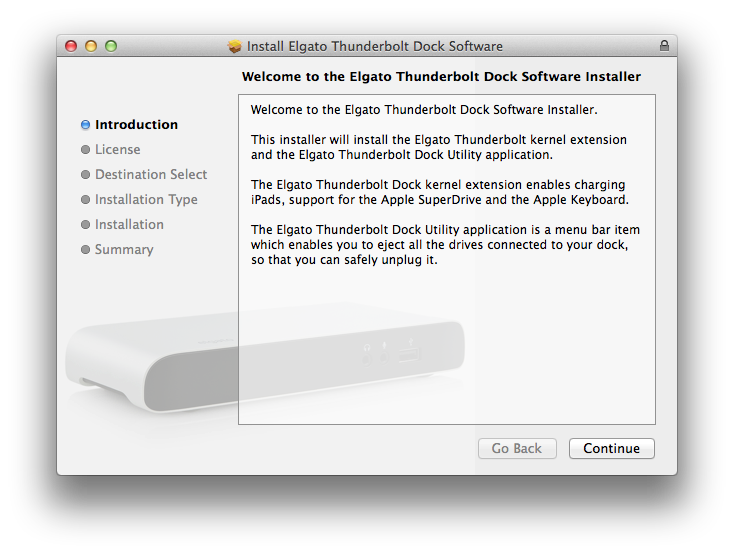

Double click on the Elgato_Thunderbolt_Dock_Software_1.0.pkg to launch the Elgato Thunderbolt Dock Software Installer.

Press Continue to start the installation process.

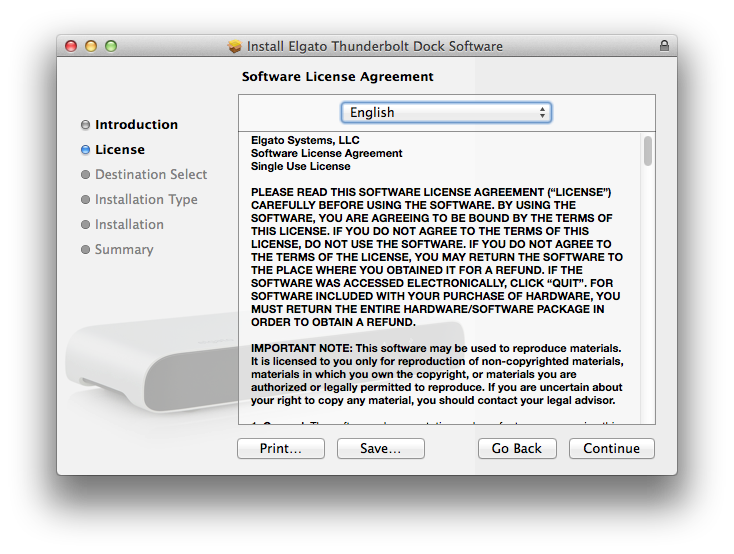

Press Continue to agree to the Software License Agreement.

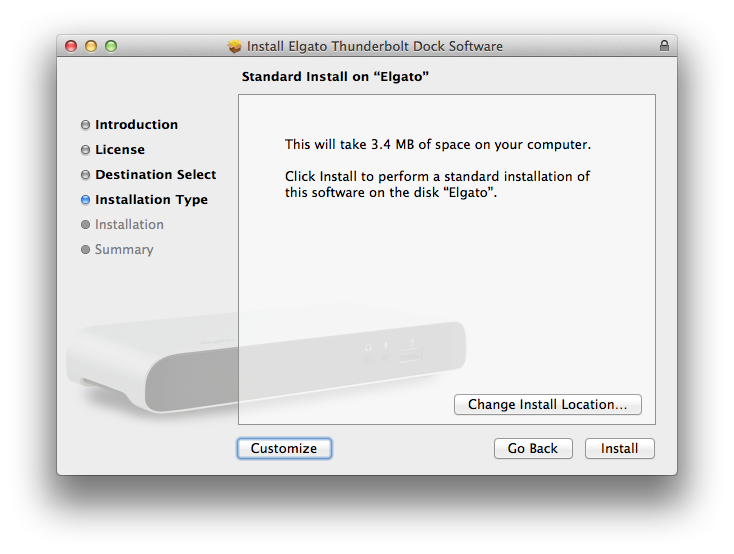

The installation will take 3.4 MB on your computer. It will start as soon as you press the Install button.

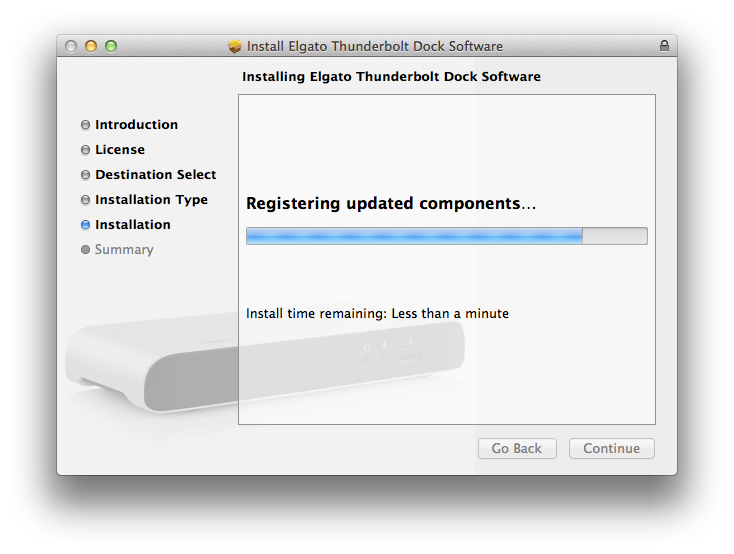

The installer will copy and register the necessary files, which will take around a minute.

Once the installation process is complete, your computer will restart.

Using the Elgato Thunderbolt™ Dock Utility

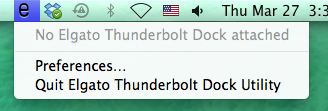

Once installed, you can access the Elgato Thunderbolt Dock Utility from the menu bar. Its icon is a lowercase "e".

This menu will show three options at the top:

1) No Elgato Thunderbolt Dock attached

This appears when the Elgato Thunderbolt 3 Dock is not physically attached.

2) Unplug Elgato Thunderbolt Dock

This appears when the Elgato Thunderbolt 3 Dock is fully attached and detected. If you select this option, the drives attached to your Dock will be ejected. You can then physically unplug the dock from the computer.

3) Elgato Thunderbolt Dock is safe to unplug

This appears after the Elgato Thunderbolt 3 Dock and the equipment attached to it is unmounted. You can now physically remove the Thunderbolt cable from your Mac.

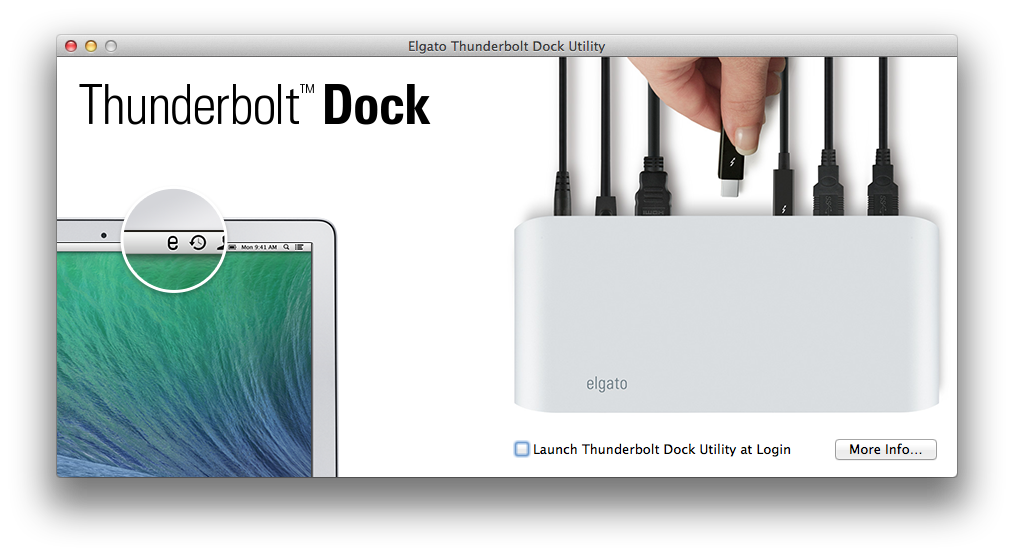

If you select the Preferences... option then you will bring up the main window of the Elgato Thunderbolt Dock Utility

Here you can select to Launch Thunderbolt Dock Utility at Login.

If any assistance is needed, feel free to contact us through the widget at the right.
