The following article is for a product that is now considered Legacy (EOL) status. Because of this, the information below may not match what is possible with current Elgato hardware and software. |
This guide will cover setting up Cam Link Pro in Streamlabs Desktop.
Requirements
Cam Link Pro installed in a desktop PC
4K Capture Utility 1.7.4 or newer installed
Streamlabs Desktop installed and up to date
Setup Steps

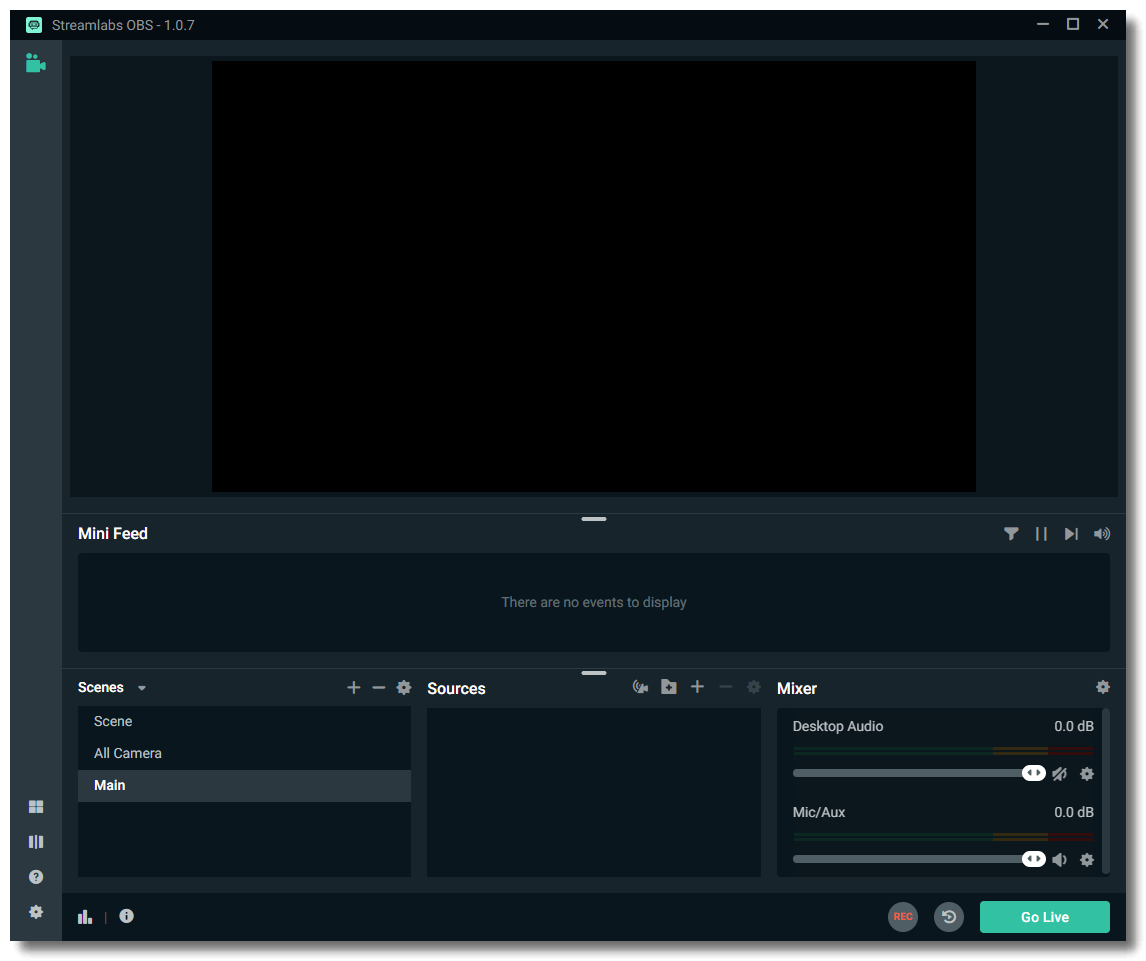

1) Open Streamlabs Desktop

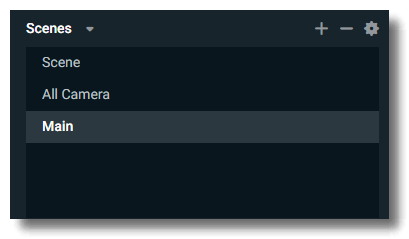

2) Select the scene to add Cam Link Pro to

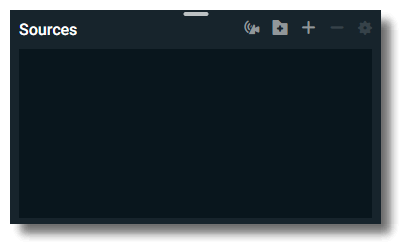

3) Click on the + icon above the Sources box

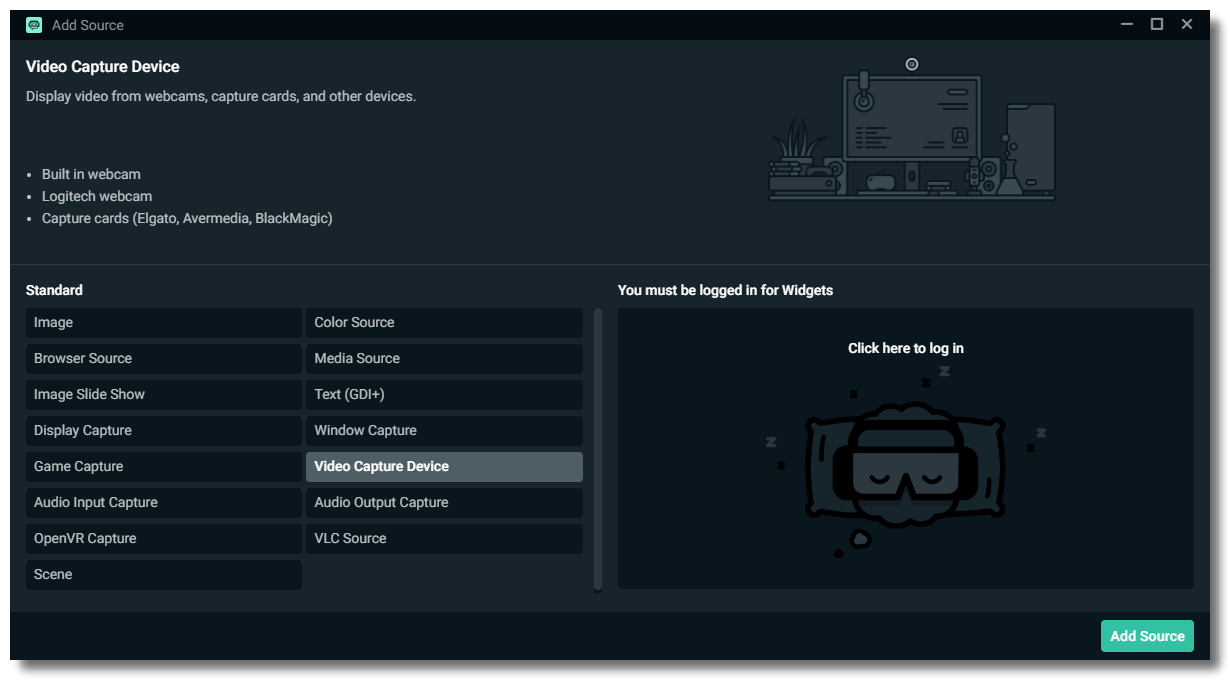

4) In the Add Source menu select Video Capture Device then click Add Source

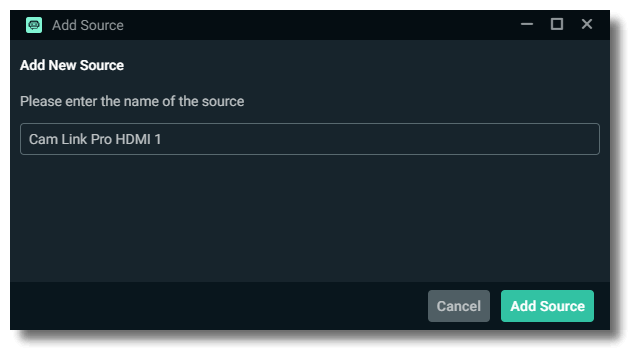

6) Give the Source a name. For example, Cam Link Pro HDMI 1, then click Add Source

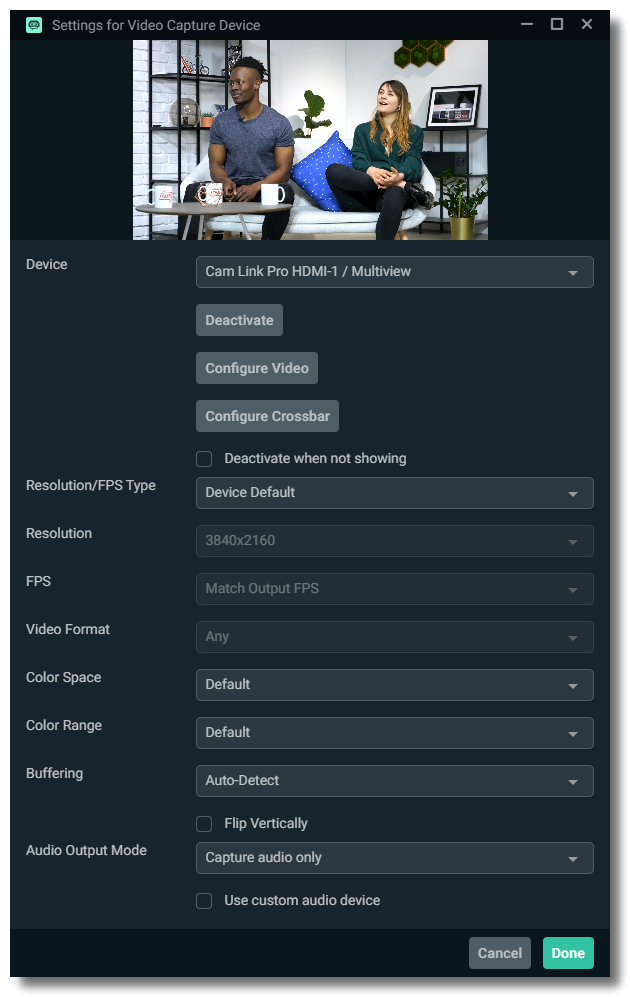

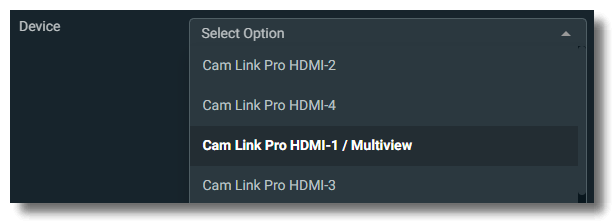

7) Now, select one of the four Cam Link Pro inputs you want to add, then click on OK.
All other settings can be left on default settings.
8) Click on Done to close the settings.
To add each HDMI input as its own source, simply repeat these steps, each time selecting a different HDMI input. You can mix and match the HDMI inputs in any number of scenes you want. You can have a scene with just one Cam Link Pro input, or a scene with all 4 added at once.
If any assistance is needed, feel free to contact us through the widget at the right.
