Elgato Wave DX — Removing and Reattaching Mono Swivel Mount

This guide will cover removing and reattaching Wave DX Mono Swivel Mount.



Removing Wave DX Mono Swivel Mount



The Mono Swivel Mount can be removed by removing the thumb screw connected to the Wave DX Mono Swivel Mount.




Reattaching Wave DX Mono Swivel Mount

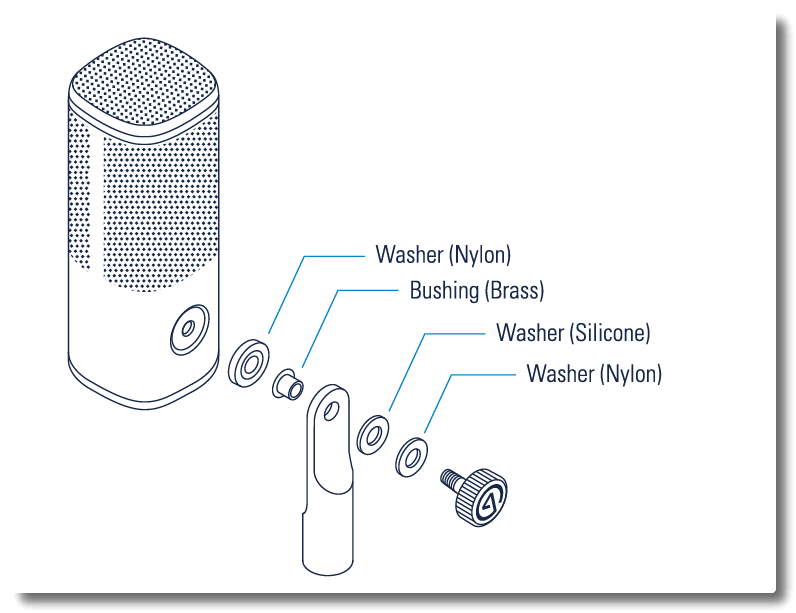

To reattach the mount, stack the socket set in the following order.

  1. Washer (Nylon)
  2. Bushing (Brass)
  3. Mount
  4. Washer (Silicone)
  5. Washer (Nylon)
