Как установить утилиту Elgato Thunderbolt™ Dock?

The Elgato Thunderbolt™ Dockcan work as soon as you plug it into your Mac's Thunderbolt™port, but to get the best utilization of its features, you'll need to install the Elgato Thunderbolt™ Dock Utilityfrom Elgato.




Загрузка программы установки Elgato Thunderbolt™ Dock


You can download the Thunderbolt™ Dock Software Installerfrom here:



macOS El Capitan 10.11 or later - version 1.2.9
https://update.elgato.com/mac/thunderbolt-dock-update/download.php



Mac OS X 10.11 El Capitan
Elgato_Thunderbolt_Dock_Software_112_114_1011.pkg



Mac OS X 10.10 and lower
Elgato_Thunderbolt_Dock_Software_112_114.pkg





Установка Elgato Thunderbolt™ Dock Utility


The Elgato Thunderbolt™ Dock Software Installerwill install the Elgato Thunderbolt™ kernel extensionand the Elgato Thunderbolt™ Dock Utilityapplication.



The Elgato Thunderbolt™ kernel extensionenables charging iPads, support for the Apple SuperDrive and the Apple Keyboard.



The Elgato Thunderbolt™ Dock Utilityis a menu bar item which enables you to eject all the drives connected to your dock, so that you can safely unplug it.



Double click on the Elgato_Thunderbolt_Dock_Software_1.0.pkgto launch the Elgato Thunderbolt™ Dock Software Installer.

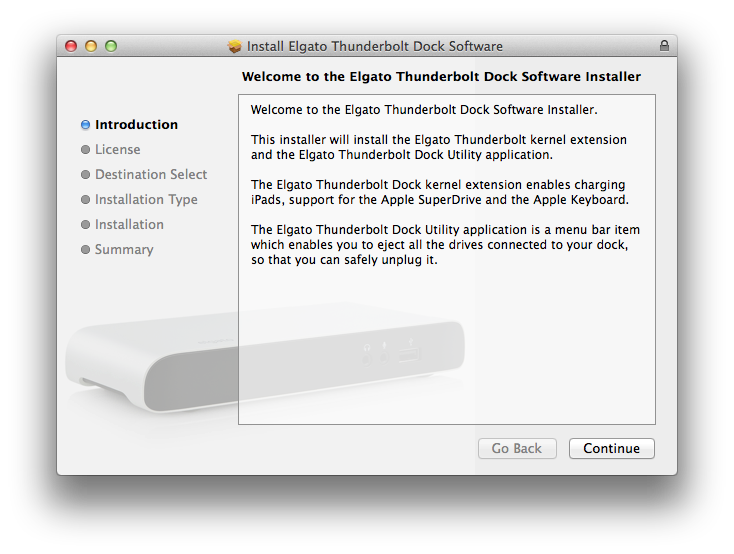

Press Continue to start the installation process.

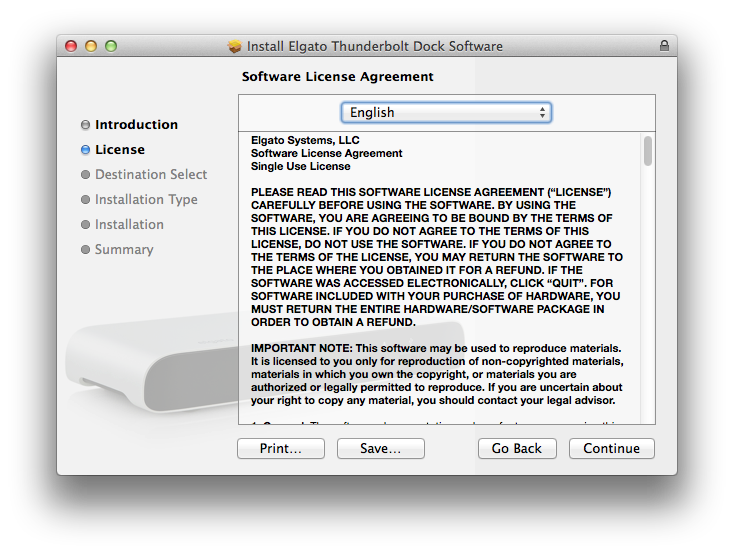

Press Continue to agree to the Software License Agreement.

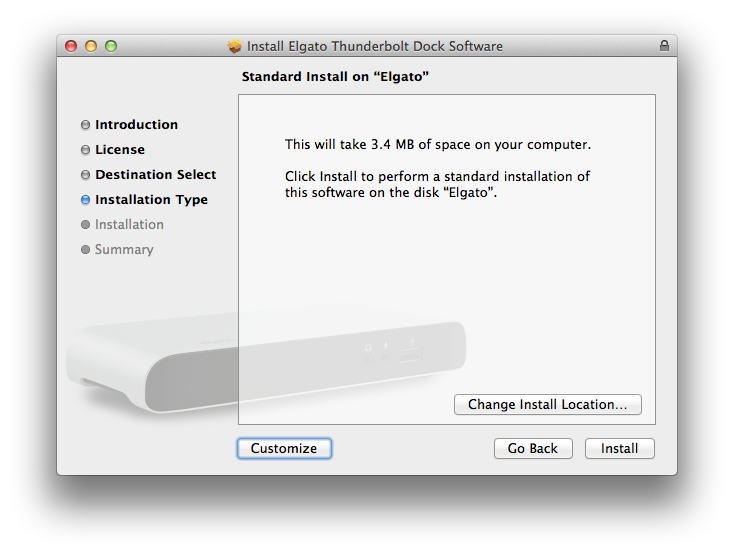

The installation will take 3.4 MB on your computer. It will start as soon as you press the Installbutton.

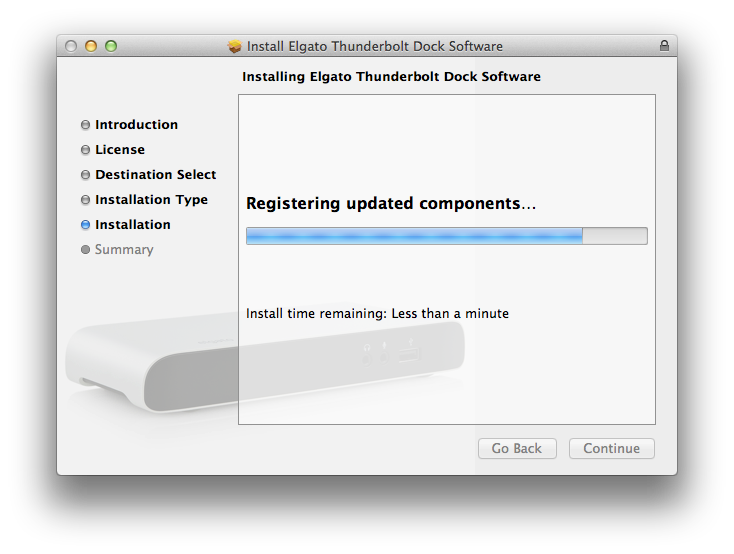

The installer will copy and register the necessary files, which will take around a minute.

Once the installation process is complete, your computer will restart.


Использование Elgato Thunderbolt™ Dock Utility

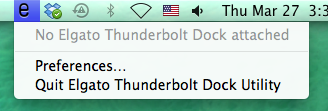

Once installed, you can access the Elgato Thunderbolt™ Dock Utility from the menu bar. Its icon is a lowercase "e".


This menu will show three options at the top:


1) No Elgato Thunderbolt Dock attached

This appears when the Elgato Thunderbolt™ Dockis not physically attached.


2) Unplug Elgato Thunderbolt Dock

This appears when the Elgato Thunderbolt™ Dock is fully attached and detected. If you select this option, the drives attached to your Dock will be ejected. You can then physically unplug the dock from the computer.


3) Elgato Thunderbolt Dock is safe to unplug

This appears after the Elgato Thunderbolt™ Dockand the equipment attached to it is unmounted. You can now physically remove the Thunderbolt™cable from your Mac.

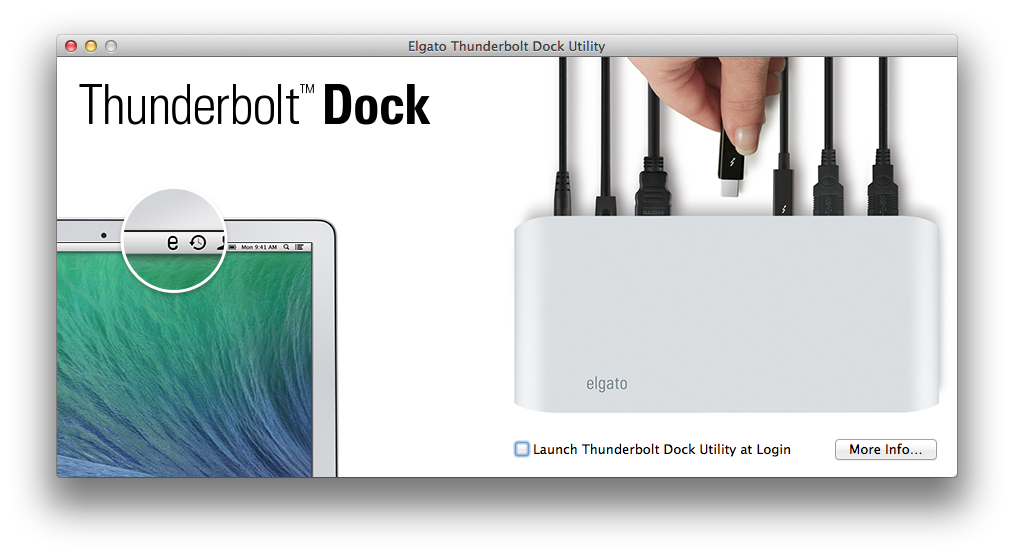

If you select the Preferences... option then you will bring up the main window of the Elgato Thunderbolt™ Dock Utility


Here you can elect to Launch Thunderbolt™ Dock Utility at Login.
