Elgato Game Capture HD60 S connects to the Xbox 360 using HDMI. It can passthrough video to a TV set also using HDMI. An HDMI cable is included in the box.
Inputs and Outputs

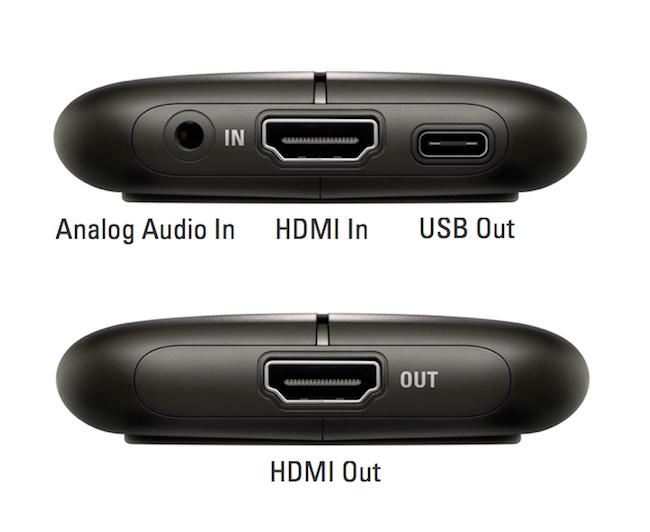

Elgato Game Capture HD60 S has two inputs, and two outputs:
HDMI In
This connects to a game console or other video source. Signals protected by HDCP can't be used.
Analog Audio In
This connects to an analog audio source, using an 3.5mm cable. This is audio line in, and not a microphone port.
USB Out
This USB-C port sends the raw video to your computer via USB 3.x. This high speed connection allows for the Instant Gameview low latency preview of the Elgato Game Capture HD60 S. The preview will only be delayed by 50-100 milliseconds.
The USB cable also powers the Elgato Game Capture HD60 S hardware.
HDMI Out
This sends the HDMI signal in real time to a TV or display, so you can play your game normally.
Setup Steps
Download and install the Elgato Game Capture HD S software, version 3.2 or higher:
https://www.elgato.com/en/gaming/downloads
Connect your Xbox 360 to the HDMI In of Elgato Game Capture HD60 S via an HDMI cable
Connect the HDMI Out of Elgato Game Capture HD60 S to your TV or display via an HDMI cable.
Connect the Elgato Game Capture HD60 S to your computer via a USB cable.
Troubleshooting - No Image Appears On The TV
If your TV only supports 1080i or 720p, and not 1080p, then you may not get a video image when Elgato Game Capture HD60 S is first connected. The video may still appear in the software, but not on your TV.
The solution would be to set your Xbox 360 to output video to 720p or 1080i - whatever format your TV can support.
Improving Performance
Elgato Game Capture HD software works well if your computer exceeds the basic System Requirements.
Elgato Game Capture HD60 S System-Requirements
If your computer barely meets the minimum System Requirements, then performance may suffer, especially if you are trying to do a number of things at the same time.
This article includes a few steps you can take to improve performance in such situations:
Improve Elgato Game Capture HD software performance
