Using your Xbox 360 with Elgato Game Capture HD is easy, after a few minutes of setup.
Setup Video
Setup Instructions

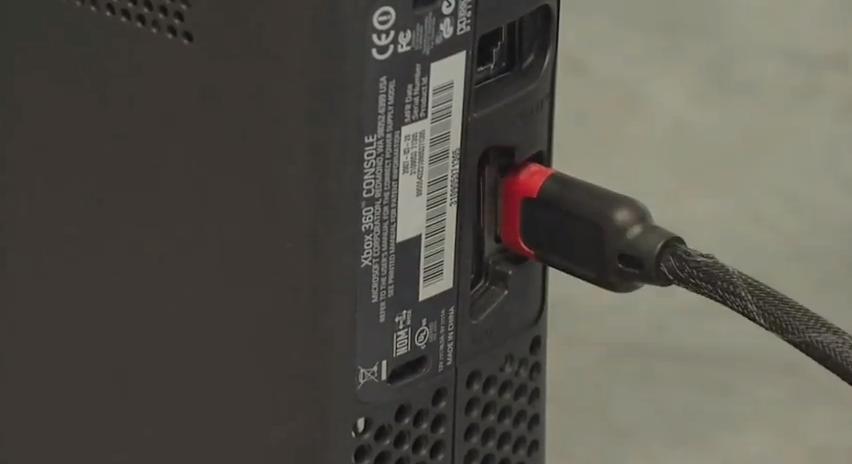

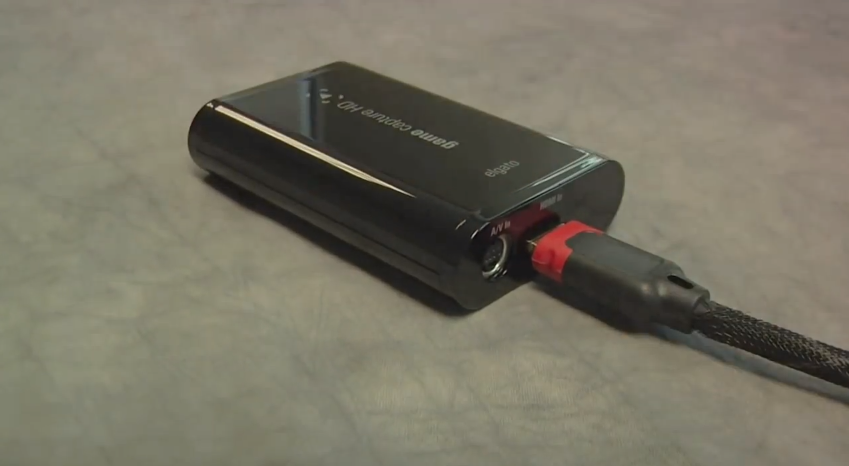

1) Connect your Xbox 360 to the HDMI In port of Elgato Game Capture HD using the supplied HDMI cable.

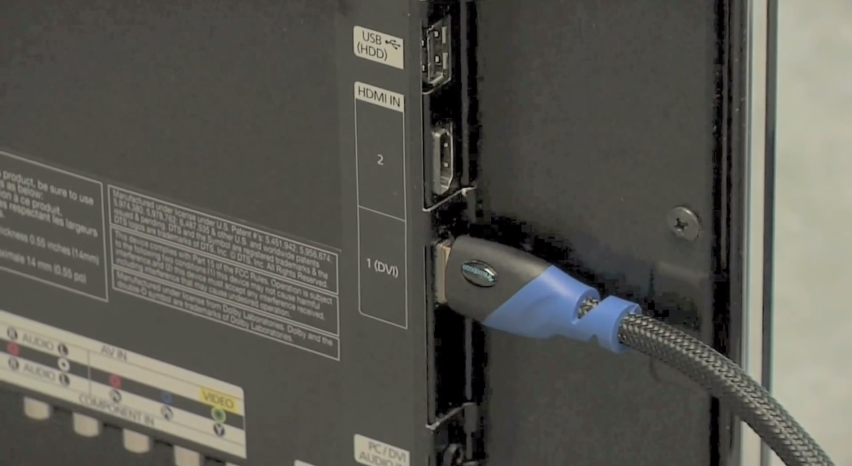

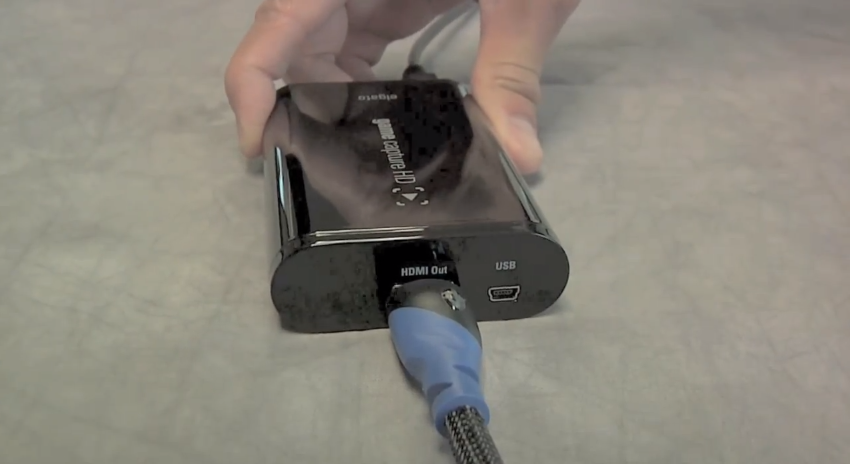

2) Connect your TV to the HDMI Out port of Elgato Game Capture HD using your existing HDMI cable.
3) Connect Elgato Game Capture HD to your Mac or PC using the supplied USB cable.
4) Visit https://www.elgato.com/en/gaming/downloads to download the latest Elgato Game Capture HD software.
Troubleshooting - No Image Appears On The TV
If your TV only supports 1080i or 720p, and not 1080p, then you may not get a video image when Elgato Game Capture HD is first connected. The video may still appear in the software, but not on your TV.
The solution would be to set your Xbox 360 to output video to 720p or 1080i - whatever format your TV can support.
Improving Performance
Elgato Game Capture HD software works well if your computer exceeds the basic System Requirements.
Elgato Game Capture HD System Requirements
If your computer barely meets the minimum System Requirements, then performance may suffer, especially if you are trying to do a number of things at the same time.
This article includes a few steps you can take to improve performance in such situations:
Improve Elgato Game Capture HD software performance
(Article 1004)
