G keys are dedicated macro keys fully programmable for Stream Deck. This guide will review the requirements, compatible devices, and how to configure them.
Contents
- Software Requirements
- Supported Devices
- iCUE Settings
- Configuring G Keys in Stream Deck
- Floating Action Bar
Software Requirements
Stream Deck and iCUE must be running simultaneously for G key support. Click the links below to download.
Supported Devices
- K100 AIR WIRELESS
- K100 RGB
- K95 RGB Platinum
- K95 RGB Platinum SE
- K95 RGB Platinum XT
- K55 RGB
- K55 RGB PRO
- K55 RGB PRO XT
- Corsair Voyager Laptop S-Key Macro Bar
- SCUF Envision Controller
Stream Deck and iCUE must be running simultaneously for G key support.
iCUE Settings
1) Open iCUE
2) Navigate to iCUE Settings.

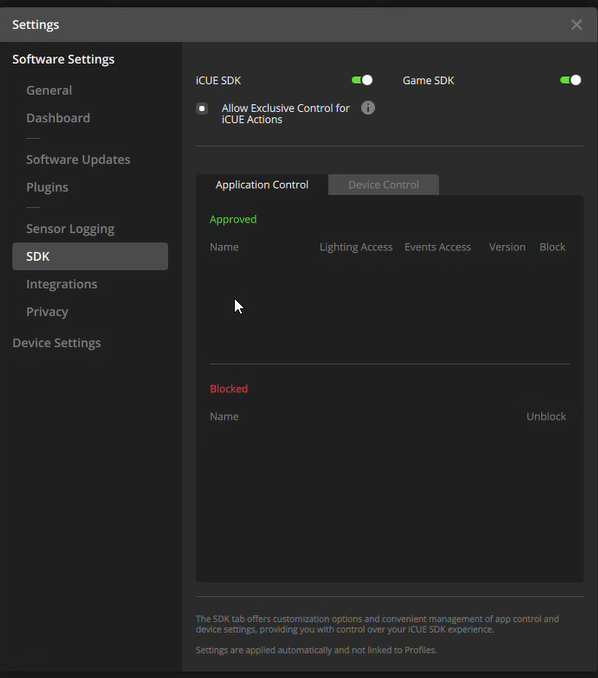

3) Select SDK and check if OICUE SDK and GAME SDK are enabled.
Note: If SDK are disabled, the Stream Deck integration will not work.
Configuring G Keys in Stream Deck

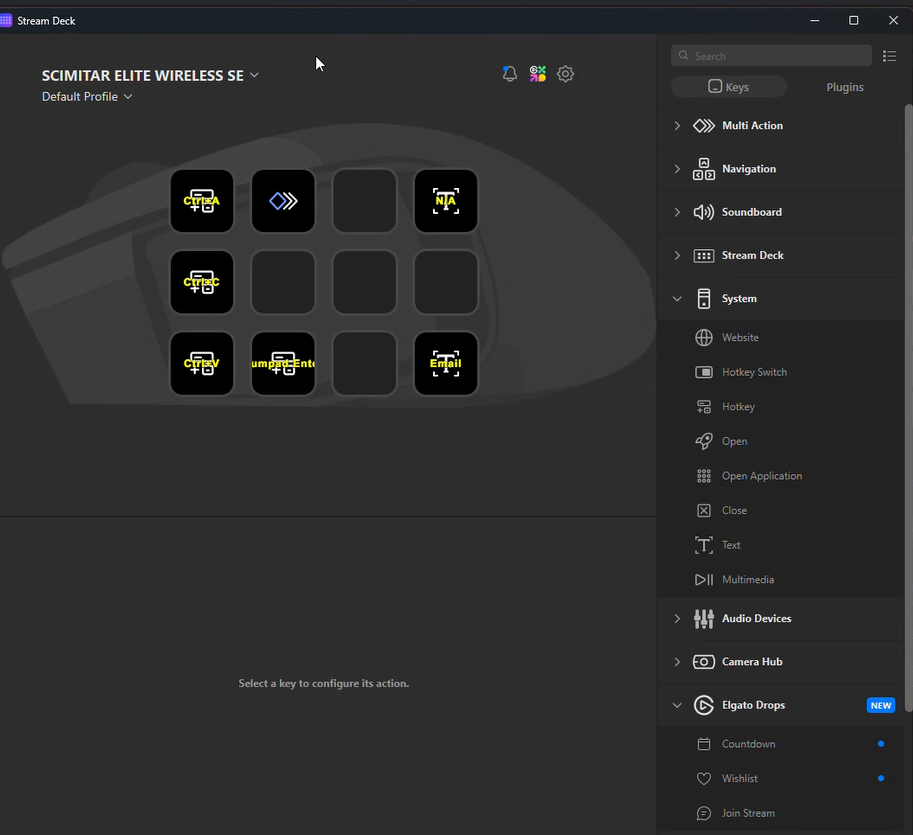

Use the Stream Deck software to drag and drop actions onto G Keys and personalize your configuration with custom icons. When it's showtime, tap to switch scenes, launch media, post tweets, and more. You can even trigger GIFs, images, videos, and audio to invigorate your stream like never before. In this example, a SCIMITAR ELITE WIRELESS SE MMO Gaming Mouse.
Floating Action Bar

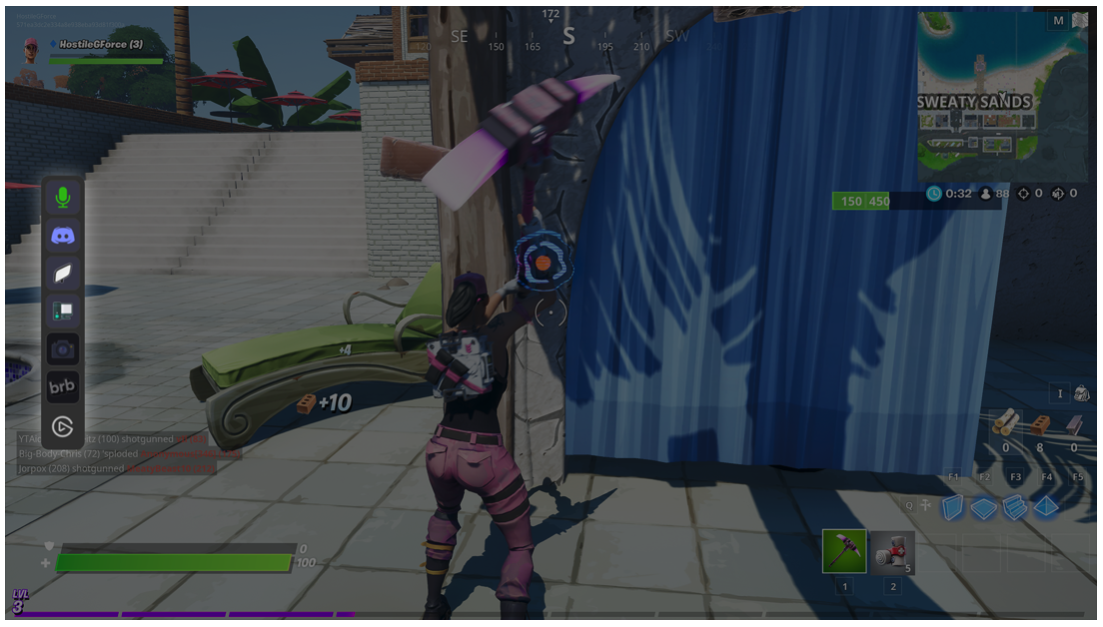

While your programmed actions can be viewed in the Stream Deck software, a floating Action Bar displays them on the screen for quick reference.

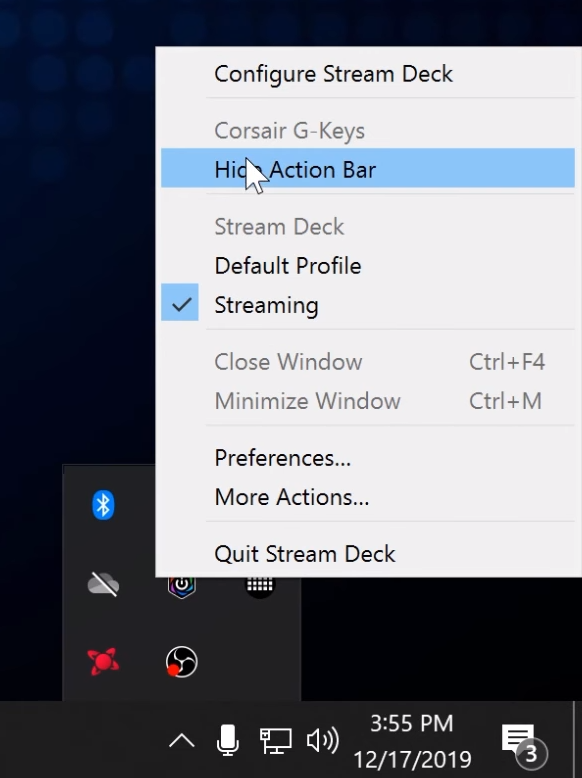

This Action Bar can be dismissed by finding the Stream Deck icon on your Windows Systems Tray or macOS Menu Bar and selecting Hide Action Bar.
Please Note: The action bar will not be displayed when playing games using Fullscreen or Fullscreen Exclusive mode.
Games must be played in Windowed or Windowed Borderless for the action bar to show over the game.
If any assistance is needed, feel free to contact us through the widget at the right.
