In this article, we’ll go over how to properly connect and set up your Chat Link Pro with Nintendo Switch. or Nintendo Switch 2.
Requirements
- Chat Link Pro
- Nintendo Switch or Nintendo Switch 2
- Compatible Wired/3.5mm Headset
- Windows 11 or macOS 14.2 Sonoma or later
Topics:
- Setup Steps
- Enabling Analog in Elgato Studio Software
- OBS Studio - PCIe Capture Card with Line-in Port Input
Setup Steps
1. Connect the male 4-pole 3.5mm connector of the Elgato Chat Link Pro cable into your console.
2. Connect your compatible headset into the female 4-pole 3.5mm port of the Elgato Chat Link Pro.
3. Connect the male 3.5mm jack of the Elgato Chat Link Pro cable into the 3.5mm analog input port of your external capture card or Line-In port on your laptop or PC.
Note: make sure you are using the Line-in port and not the Mic port on your PC. Mic ports use different voltages and may cause issues.
Elgato Studio Software - USB Capture Card (Windows/Mac)
These instructions relate to the following Elgato Capture Cards:
- HD60 S+
- HD60 X
- 4K X
- 4K S
1. Open Elgato Studio Software

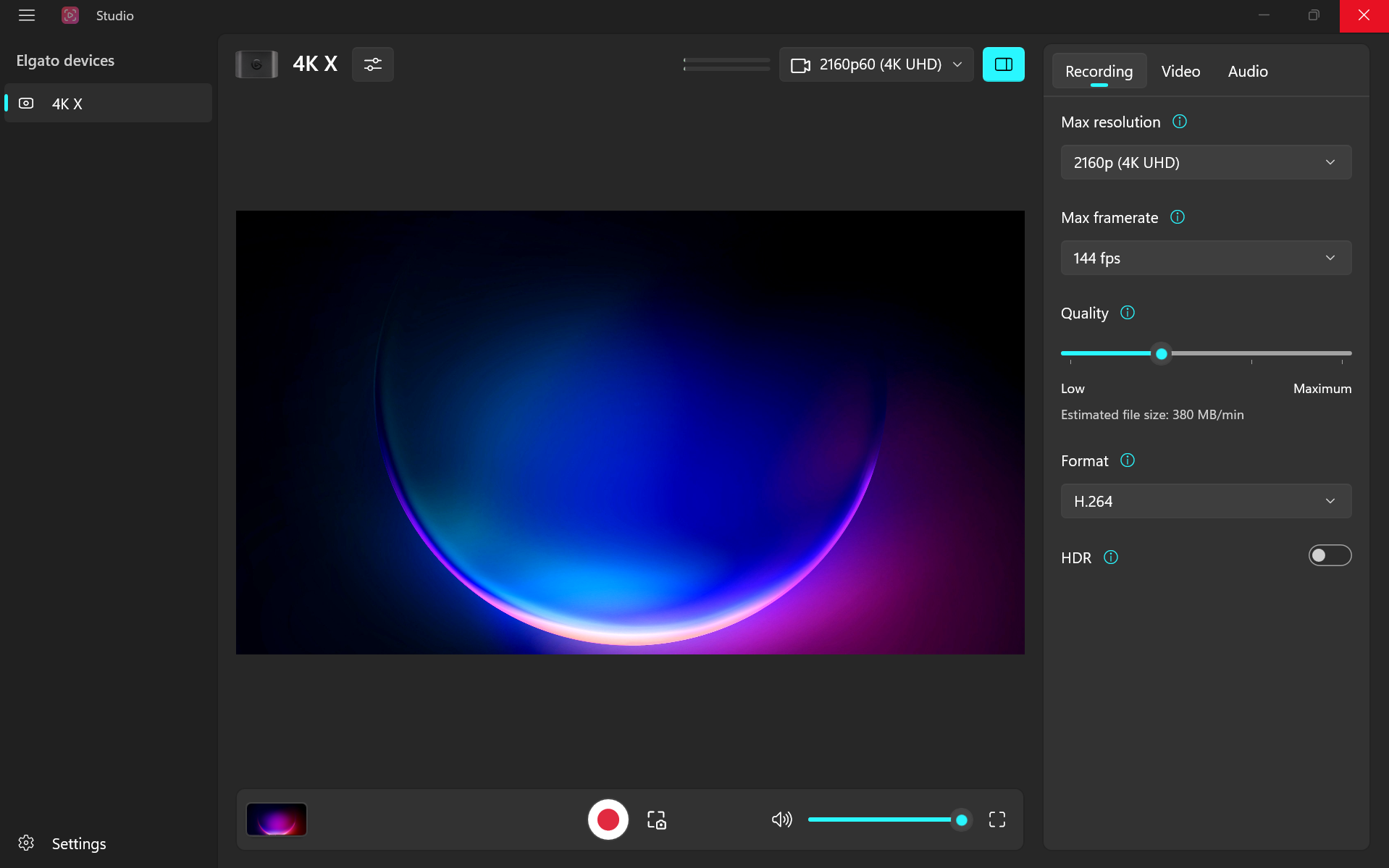

2. Open the right side panel by clicking the box next to the signal info.

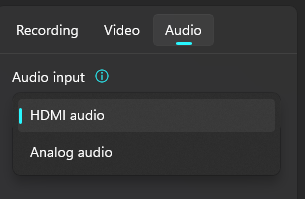

3. Select the Audio Tab and select Analog Audio from the dropdown.
OBS Studio - PCIe Capture Card with Line-in Port Input
The following instructions relate to:
- 4K Pro
- 4K60 Pro MK.2
- 4K60 Pro
-
HD60 Pro
1. Right-click on your Elgato Game Capture or "Video Capture Device" source and click on Properties.
2. Within the Properties window, scroll to the bottom.
3. Enable Use Custom Audio Device.
4. Select the input on your computer where the Chat Link Pro is connected.
5. Click on "OK" to close the Properties window.
Your Chat Link Pro is now setup for OBS studio or Streamlabs Desktop.
If any assistance is needed, feel free to contact us through the widget at the right.
