In this article, we’ll go over how to properly connect and set up your Elgato Chat Link Pro with PlayStation 4 or PlayStation 5.
Topics:
- Requirements
- Setup Steps
- Elgato Studio Software - USB Capture Card (Windows/Mac)
- OBS Studio - PCIe Capture Card with Line-in Port Input
Requirements
- Chat Link Pro
- PlayStation 4 or PlayStation 5 controller
- Compatible headset
- Windows 11 or macOS 14.2 Sonoma or later
Note: The PlayStation console allows audio to be routed to one location at a time. Make sure the console is set to route audio correctly. More information can be found here.
Setup Steps
1. Plug the male 4-pole 3.5mm jack of the Elgato Chat Link Pro cable into your PS4/PS5 controller.
2. Plug your compatible headset into the female 4-pole 3.5mm port of the Elgato Chat Link Pro.
3. Plug the male 3.5mm jack of the Elgato Chat Link Pro cable into the 3.5mm analog input port of your external capture card or Line-In port on your laptop or PC.
Note: Make sure you are using the Line-in port and not the Mic port on your PC. Mic ports use different voltages and may cause issues.
Elgato Studio Software - USB Capture Card (Windows/Mac)
These instructions relate to the following Elgato Capture Cards:
- HD60 S+
- HD60 X
- 4K X
- 4K S
1. Open Elgato Studio Software

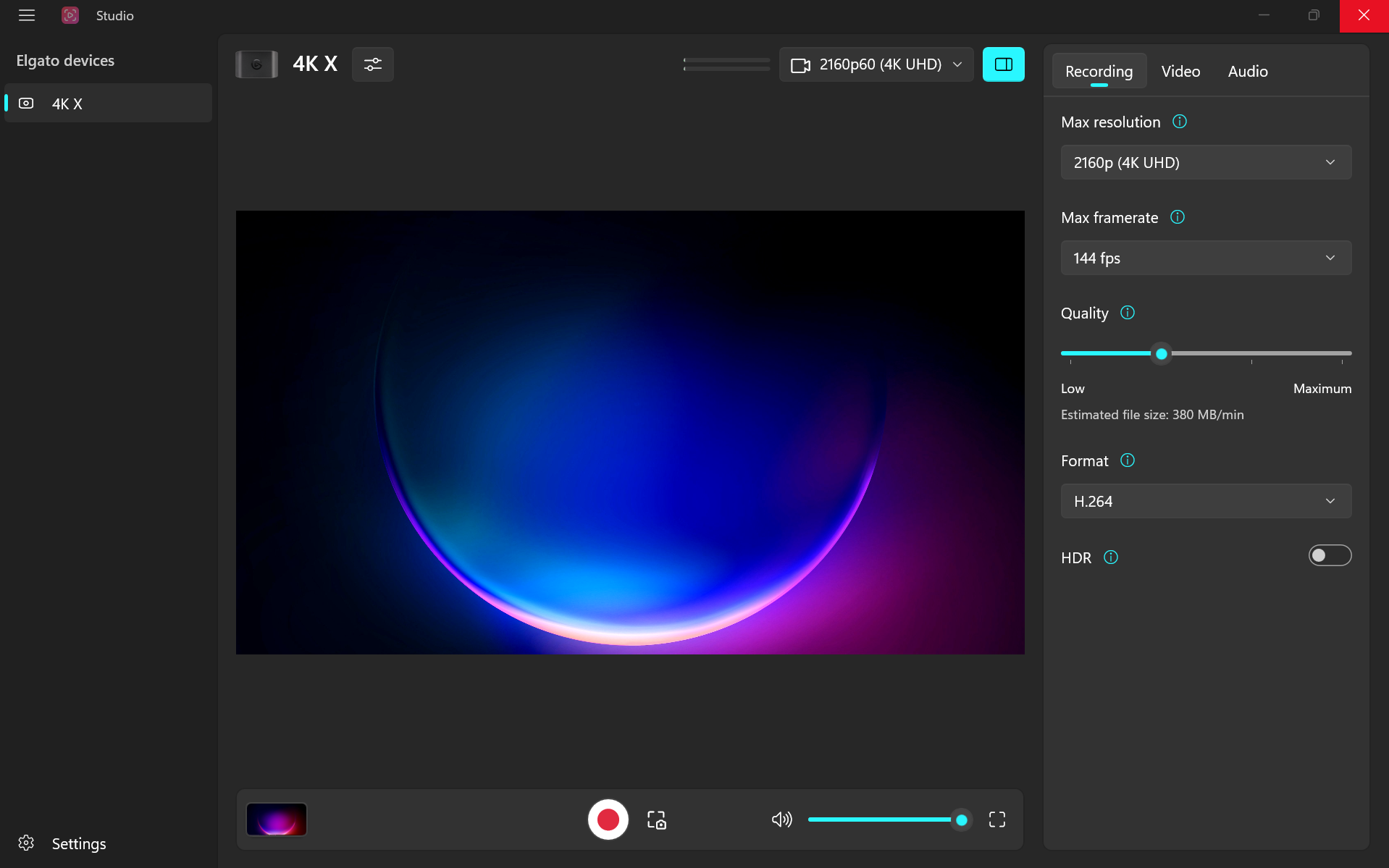

2. Open the right side panel by clicking the box next to the signal info.

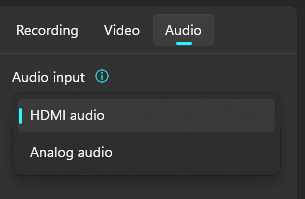

3. Select the Audio Tab and select Analog Audio from the dropdown.
OBS Studio - PCIe Capture Card with Line-in Port Input
1. Right-click on your "Video Capture Device" source and click on Properties.
2. Within the Properties window, click on Configure Video.
3. Check the box for "Use Custom Audio Device"
4. Select the input on your computer where the Chat Link is connected.
5. Click on "OK" to close the Properties window.
Your Chat Link Pro is now setup for OBS studio or Streamlabs Desktop.
