Stream Deck update 5.1 introduced a functionality called Pages
This guide will go over how to set up and use Pages.
Table of contents
Creating A Page

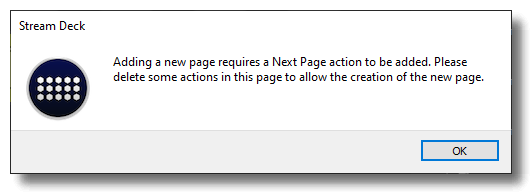

To create a Page, one key will need to be empty.

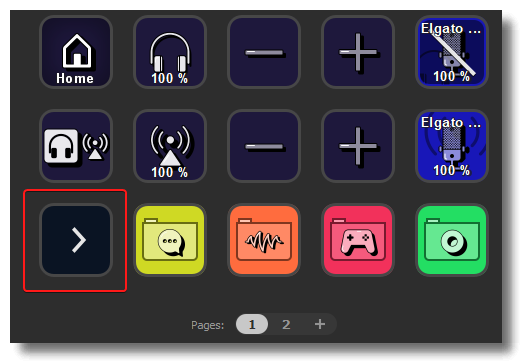

This key will be occupied by a 'Next Page' action which is added automatically.

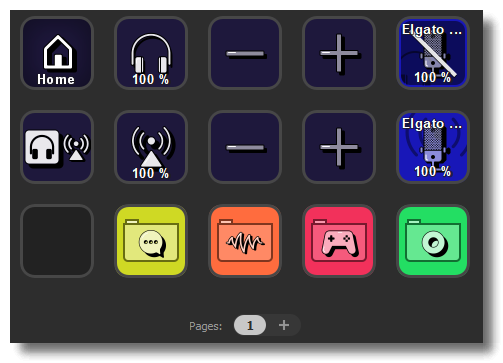

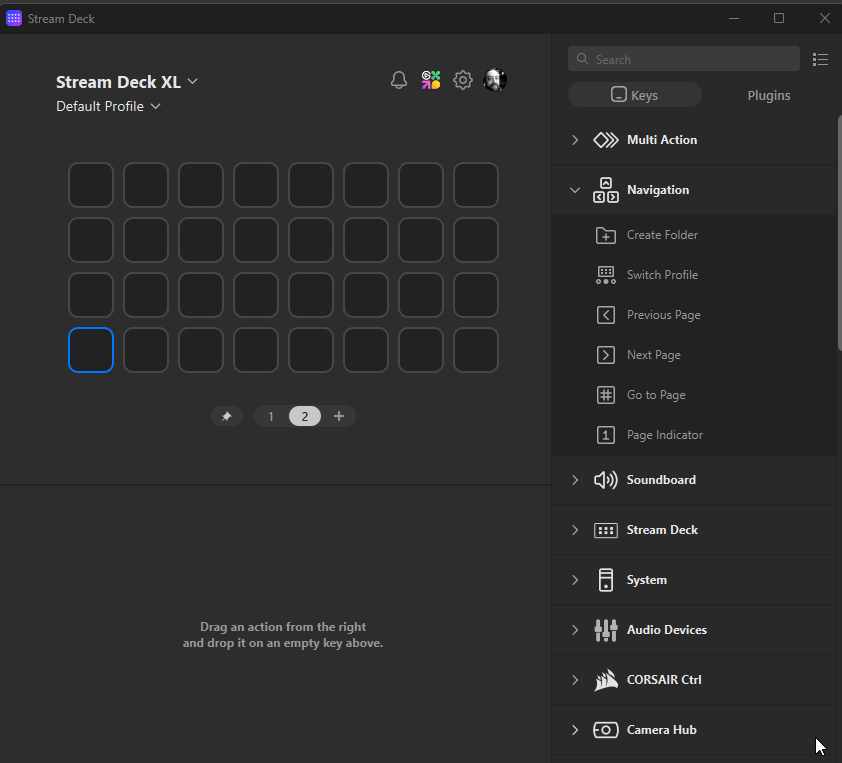

1) To create a Page, click on the + button under the canvas.
Creating Additional Pages
Pages 2 through 9 will feature two automatically placed actions, Next Page and Previous Page.

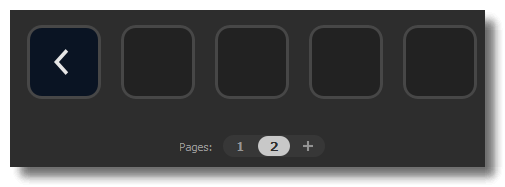

The last Page will only contain the Previous Page action since there are no Pages after it.
For example, if you set up Pages 1 and 2, Page 1 will have a Next Page action and Page 2 will have a Previous Page action.

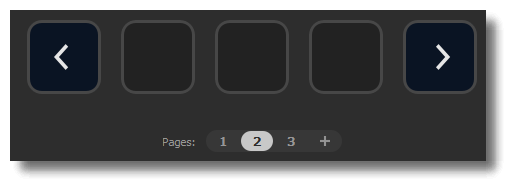

If you set up Pages 1, 2, and 3, Page 2 will now have a Previous Page and a Next Page action.
These actions can be deleted or they can be moved to different keys as desired.
Note: If the key is deleted, you will need to manually navigate or reassign the command.
Note: You can create up to 10 pages per Profile.
Page-Specific Actions
Next/Previous Page
These actions are automatically placed on available keys to enable Page navigation and cannot be deleted/removed.

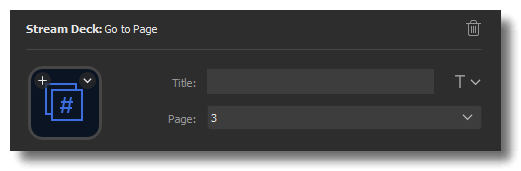

Go To Page
This action will go to the Page specified in the property inspector.

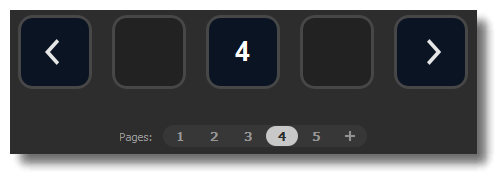

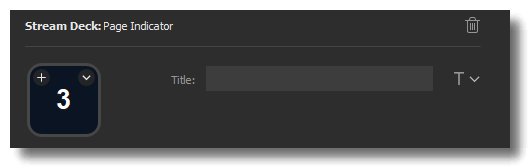

Page Indicator
This action will show the current Page number on a key. The action has no other function when pressed.
The number will automatically adjust to show the Page it is on.
Deleting a page
Follow these steps to delete a page.
1) Hover your mouse over the page you wish to delete
2) Right-click and then select Delete.
If pages exist after the page you wish to delete, those pages will move down one page number.
For example - Stream Deck software has three pages created, 1, 2, 3.
Deleting page 2 will move page 3 into the position of page 2 and page 3 will become the new page 2.
