Elgato Stream Deck — Device Orientation

With the introduction of Stream Deck 5.3, you can rotate Stream Deck device orientation.

Please note that the following models do not support orientation changes at this time due to their physical design. This includes the following:

• Stream Deck Neo
• Stream Deck +
• Stream Deck +XL

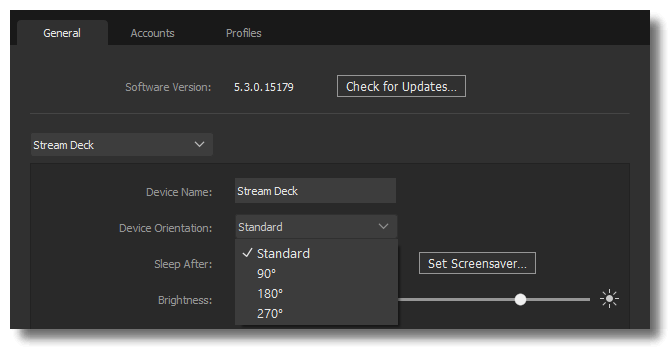

Change Stream Deck Device Orientation in Stream Deck 5.3 through 5.X

The device orientation can be rotated to 90°, 180°, 270°, and standard. To adjust it, please follow these steps.

1. Open Stream Deck Preferences.
2. Under the General tab, search for Device Orientation.
3. Select the drop-down menu and choose an option.

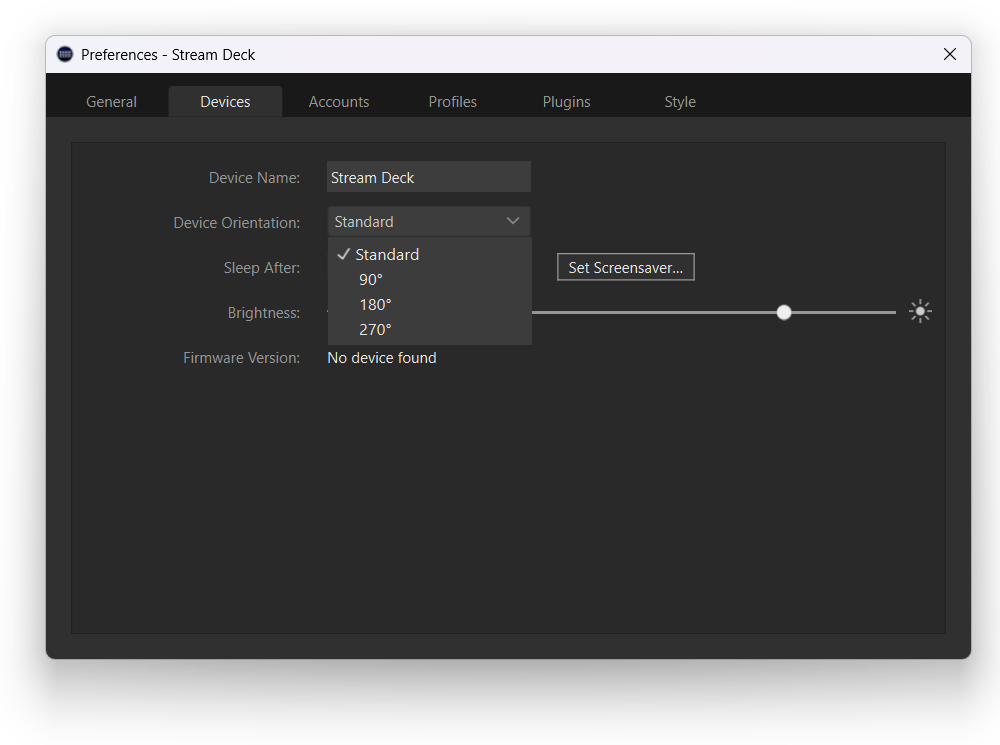

Change Stream Deck Device Orientation in Stream Deck 6.X

The device orientation can be rotated to 90°, 180°, 270°, and standard. To adjust it, please follow these steps.

1. Open Stream Deck Preferences.
2. Go to the Devices tab.
3. Select the Device Orientation drop-down menu and choose an option.

ℹ️ Once an option has been selected, the Icons will automatically rotate on your device. If device orientation is not available, please verify Stream Deck 5.3 or later is installed.
