With Wave Link 1.7 and newer, using a soundboard is easier than ever with Wave Link MicrophoneFX. When enabled, all audio played in Stream Deck will be routed to Wave Link MicrophoneFX.
Contents
- Requirements
- Wave Link - Adding Stream Deck as an Audio Input
- Set Wave Link MicrophoneFX as a default input device
- Discord Setup
Requirements
Hardware
- Stream Deck mobile or Stream Deck (any compatible device)
- A Wave Link device (Stream Deck +, Wave:1, Wave:3 or Wave XLR)
Software
- Stream Deck 6.0 or later
- Wave Link 1.7 or later
Software downloads are available at elgato.com/downloads.
Wave Link - Adding Stream Deck as an Audio Input
1) Open Wave Link and add Stream Deck as an audio input.
2) Click the down arrow next to Stream Deck. Select the checkbox for "Route to MicrophoneFX."
3) Verify the Stream Mix is not muted. Any sound effects or music will not output through MicrophoneFX if the stream mix is muted.
This will now route any sound effects or music from Stream Deck to MicrophoneFX. For more information on downloading sound effects from Stream Deck, click here.
Note: If Wave Link MicrophoneFX is not selected as your default input device, it will need to be manually selected in applications such as Discord, Microsoft Teams, ETC.
Set Wave Link MicrophoneFX As a Default Device
Most applications will use your default input device for audio input unless manually configured. To change the default input device, follow these steps.

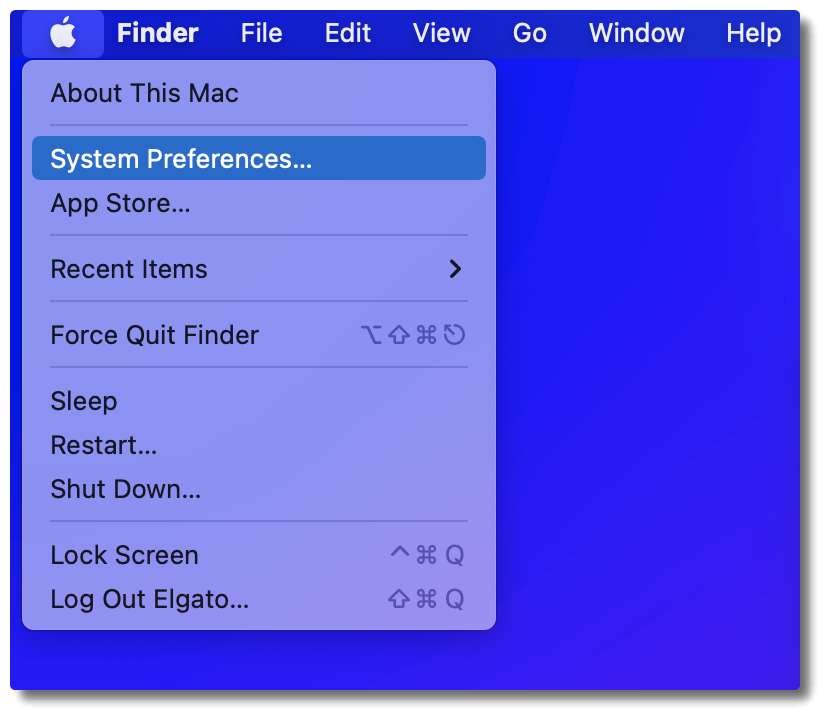

1) Select the Apple Icon > System Preferences.
2) A new window will appear. Select Sound.

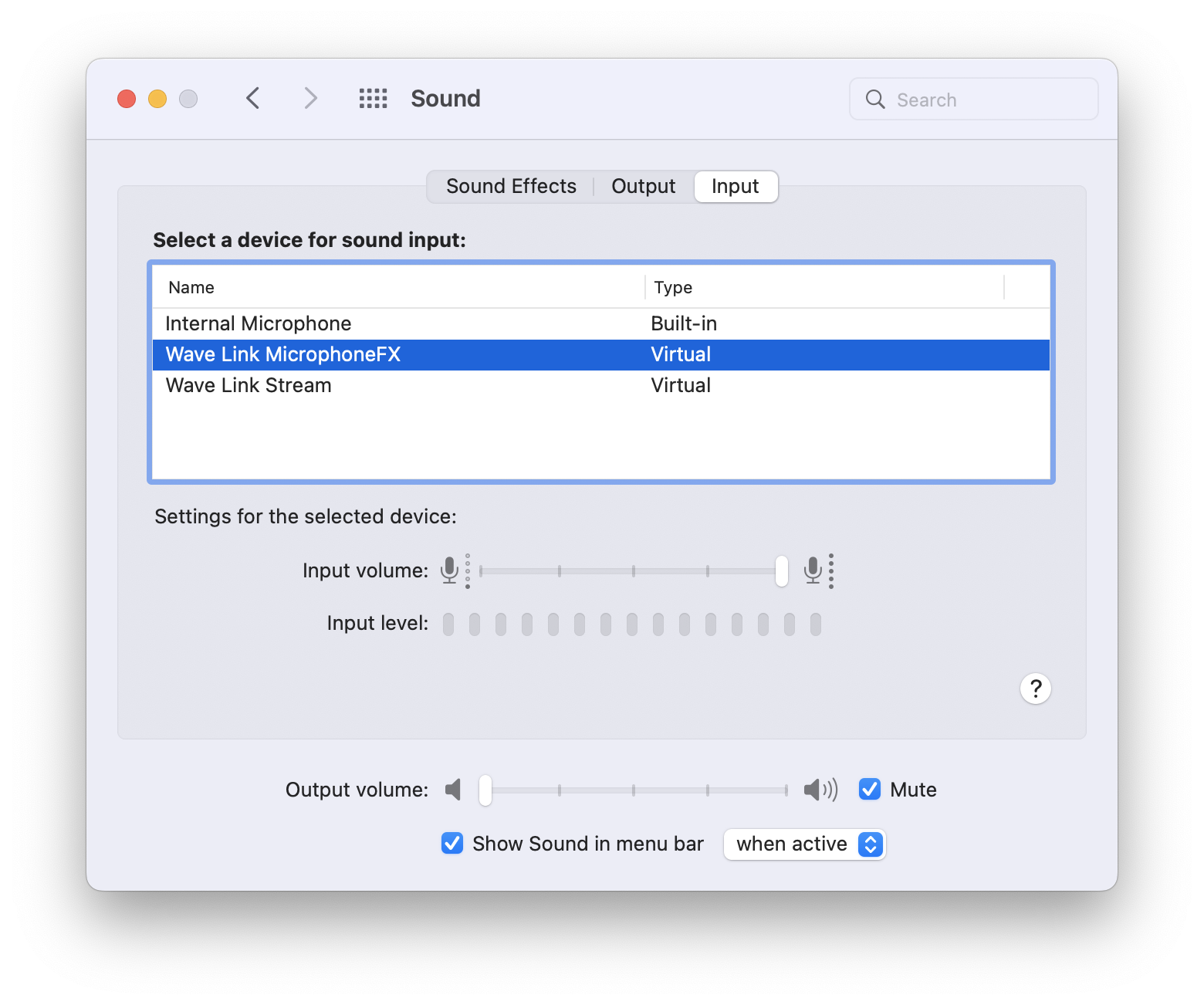

3) Select Input and Wave Link MicrophoneFX.
4) Once the Wave Link MicrophoneFX is highlighted, it's your default microphone. You can now close the Sound window.
If an application is not picking up your sound effects, ensure the correct mic is selected and the application doesn't offer additional voice options such as Noise Suppression.
Discord Setup
If Wave Link MicrophoneFX is your not selected as your default input device, follow these steps.
1) Right-click the microphone (mute) icon.
2) A Input Device window will appear. Select Wave Link MicrophoneFX
3 ) Once the Wave Link MicrophoneFX has been selected, navigate to Voice Settings. Disable Echo Cancellation and Krisp Noise Suppression. This will ensure sound effects or music will play through Wave Link MicrophoneFX without being distorted or blocked completely.
Help and Support
For additional help and support, please visit: https://e.lga.to/help
