macOS users can enable 10Gbps mode when using 4K X. This requires a Mac with 10Gbps USB or Thunderbolt ports and macOS Sonoma 14.4 or newer. Older macOS versions will continue to connect at 5Gbps.
Table of contents:
Note: If using macOS 14.2 Sonoma or newer, we recommend Elgato Studio Software. Instructions can be found here.
Requirements
Hardware
- Mac with 10Gbps USB or Thunderbolt ports
Software
- macOS Sonoma 14.4 or newer
- Capture Device Utility 1.3 or newer
Elgato Capture Device Utility can be downloaded here.

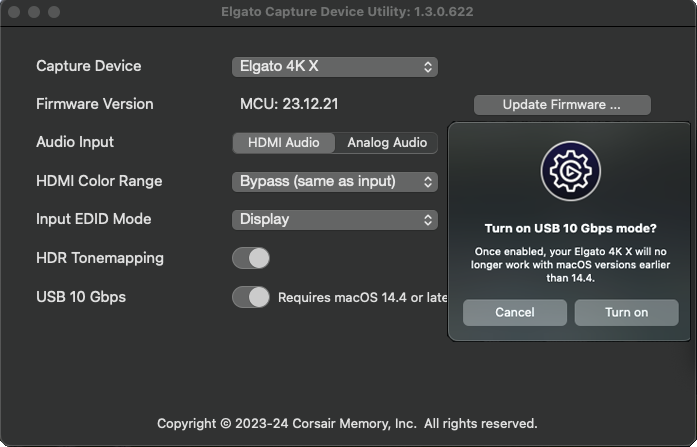

How to enable USB 10 Gbps
- Open Capture Device Utility 1.3 or newer.
- Press and hold the Option key in the app.
- Turn on USB 10Gbps in the next window.

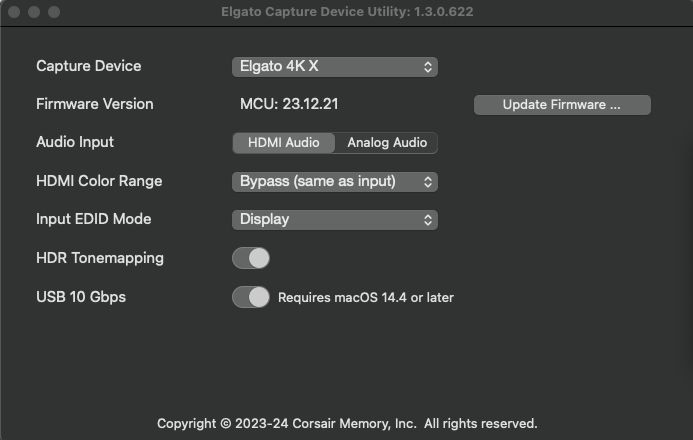

How to disable USB 10 Gbps
If 10 Gbps support is enabled, you can disable it by following these steps:
- Open Capture Device Utility 1.3 or newer.
- Turn off USB 10Gbps.
Note: This will only appear if USB 10 Gbps is enabled and using Elgato Capture Device Utility 1.3 or newer.
If any assistance is needed, feel free to contact us through the widget at the right.
