This guide will cover mounting and installation for Elgato Light Strip Pro.
Table of contents
Requirements
Hardware
- Elgato Light Strip Pro
Software
- Control Center 1.7 or later
Control Center can be downloaded from the following:
Mounting

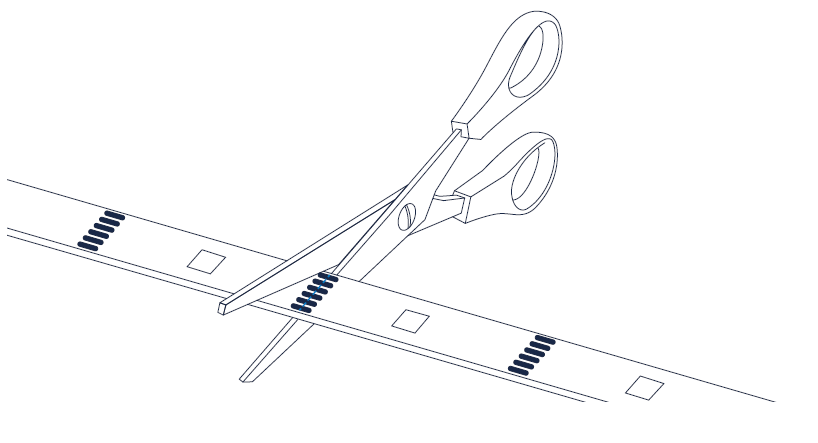

1) The length of Light Strip Pro can be adjusted to accommodate your chosen application (maximum strip
length 2000 mm | 78.8 in). To shorten Light Strip Pro, use a pair of scissors to bisect the oval copper pads.
Disconnect Light Strip from power before shortening.

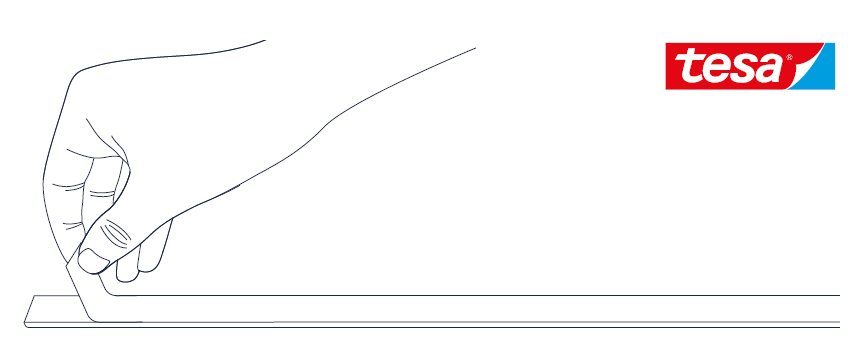

2) Clean the mounting surface with a lint-free cloth. Peel back some of the protective film to expose a short
section of the adhesive backing on Light Strip Pro, and stick to the mounting surface by applying pressure
for 5 to 10 seconds.
3) Slowly peel back the remaining film with one hand while using the other hand to press
down newly exposed sections of the adhesive backing. Once fully mounted, run your fingertips firmly
along the full length of Light Strip Pro to maximize bond strength. Use the additional tesa® adhesive strips
to mount the controller.
4) Light Strip Pro and its controller are magnetic for glueless mounting on ferromagnetic metal surfaces.
Note: If you have an ICD or pacemaker, avoid close or prolonged contact with magnets or their magnetic fields.
Installation
1) Download and install the Control Center app for Mac, Windows iOS, or Android.

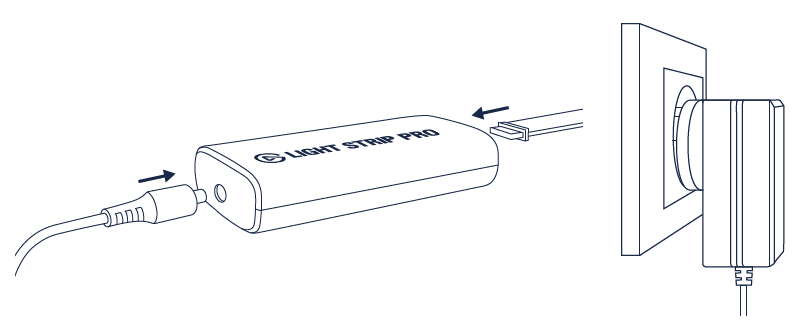

2) Connect the LED strip to the controller. Then connect the controller to the power supply and plug it into a power outlet.

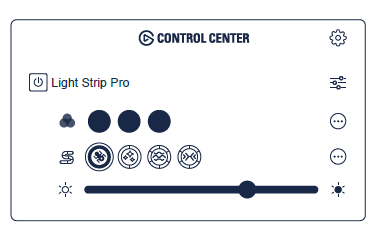

3) Launch the Control Center app and pair Light Strip Pro by clicking the + icon. Control Center will guide you through the setup process.
4) Launch the Control Center app and pair Light Strip Pro by clicking the + icon. Control Center will guide you through the setup process.
macOS
For Wi-Fi pairing using a Mac, turn on your Light Strip Pro, click the Wi-Fi icon in the top right Status
menu, and select your new accessory. After completing the Airport Utility setup process, your Light Strip Pro is accessible from Elgato Control Center.
Windows
If your PC is not equipped with Wi-Fi, use the Elgato Control Center app on your iOS or Android device to add Light Strip Pro. A Wi-Fi connection is only needed for initial pairing. Once paired, you can control Light Strip Pro via any wired or wireless device in your network.
If you're having trouble pairing Light Strip Pro to your Wi-Fi, check out our article here.
Warnings
- Light Strip Pro may become hot during prolonged use. Always handle with care.
- Light Strip Pro is made for indoor use only.
- Do not cover this product, especially the controller.
- Be especially cautious when setting up near children.
- Do not leave Light Strip Pro in direct sunlight.
- Do not use the product for applications other than those specified in this guide or the packaging.
- Do not use accessories other than those supplied with the product or stated as compatible by the
manufacturer. - Keep the lighting surface free from dirt and dust. If Light Strip Pro becomes dirty, wipe it lightly with a soft cloth moistened with a little water and mild, neutral detergent. Benzene, thinner and
other volatile agents can cause permanent damage and should never be used for cleaning.
