如何安装 Elgato Thunderbolt™ Dock 实用程序?

Elgato Thunderbolt™ Dock插入 Mac 的 Thunderbolt™端口后可以立即使用,但为了充分利用其功能,您需要从 Elgato 安装 Elgato Thunderbolt™ Dock Utility。


下载 Elgato Thunderbolt™ Dock 软件安装程序


您可以从以下位置下载 Thunderbolt™ Dock 软件安装程序:

macOS El Capitan 10.11 或更高版本 - 版本 1.2.9
https://update.elgato.com/mac/thunderbolt-dock-update/download.php

Mac OS X 10.11 El Capitan
Elgato_Thunderbolt_Dock_Software_112_114_1011.pkg

Mac OS X 10.10 及更低版本
Elgato_Thunderbolt_Dock_Software_112_114.pkg



安装 Elgato Thunderbolt™ Dock Utility


Elgato Thunderbolt™ Dock 软件安装程序将安装 Elgato Thunderbolt™ 内核扩展和 Elgato Thunderbolt™ Dock Utility应用程序。

Elgato Thunderbolt™ 内核扩展支持 iPad 充电、Apple SuperDrive 和 Apple 键盘。

Elgato Thunderbolt™ Dock Utility是一个菜单栏项目,允许您弹出连接到坞站的所有驱动器,以便您可以安全地拔掉坞站。

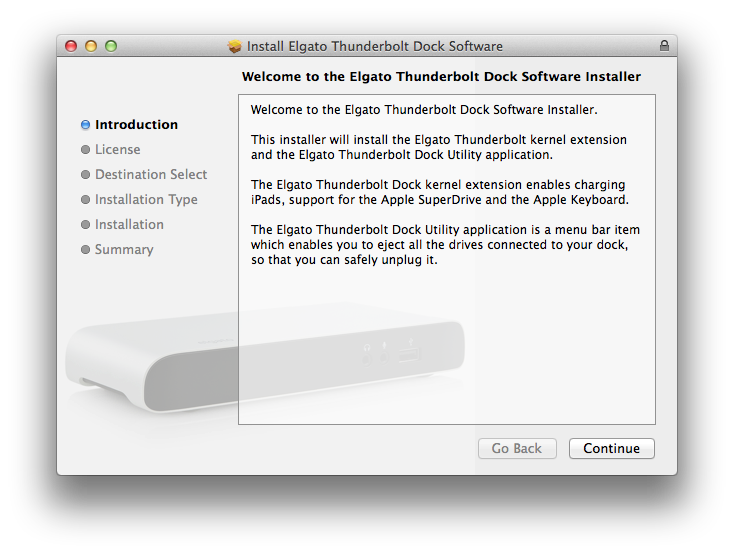

双击 Elgato_Thunderbolt_Dock_Software_1.0.pkg启动 Elgato Thunderbolt™ Dock 软件安装程序。
按 继续开始安装过程。

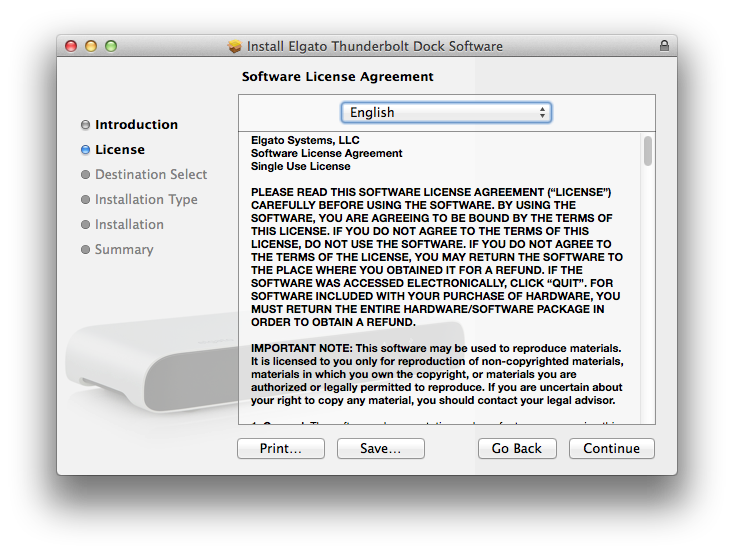

按 继续同意软件许可协议。

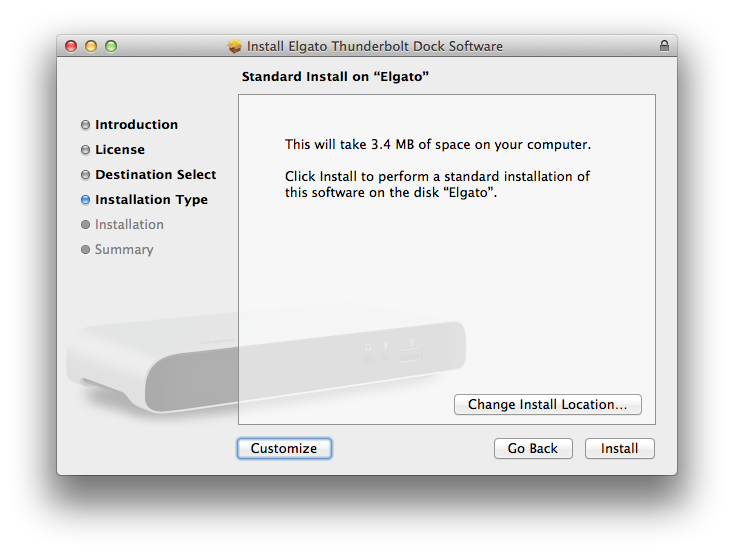

安装将在您的计算机上占用 3.4 MB。按 安装按钮后将立即开始。

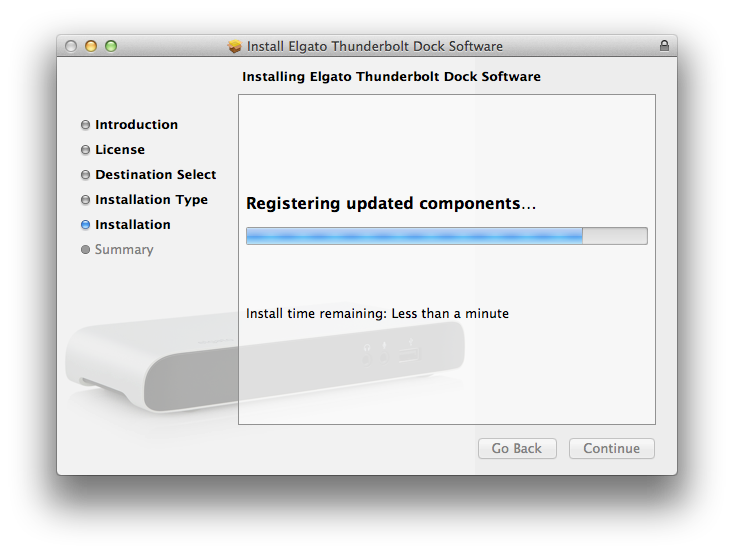

安装程序将复制并注册必要的文件,大约需要一分钟。

安装过程完成后,您的计算机将重新启动。


使用 Elgato Thunderbolt™ Dock Utility

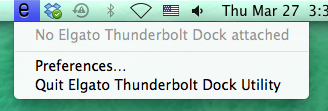

安装后,您可以从菜单栏访问 Elgato Thunderbolt™ Dock Utility。其图标是小写字母"e"。


此菜单在顶部将显示三个选项:


1) 未连接 Elgato Thunderbolt Dock

当 Elgato Thunderbolt™ Dock未以物理方式连接时显示。


2) 拔掉 Elgato Thunderbolt Dock

当 Elgato Thunderbolt™ Dock完全连接并被检测到时显示。如果选择此选项,连接到坞站的驱动器将被弹出。然后您可以将坞站从计算机上物理拔下。


3) Elgato Thunderbolt Dock 可以安全拔掉

在 Elgato Thunderbolt™ Dock和连接到它的设备卸载后显示。您现在可以从 Mac 上物理移除 Thunderbolt™线缆。

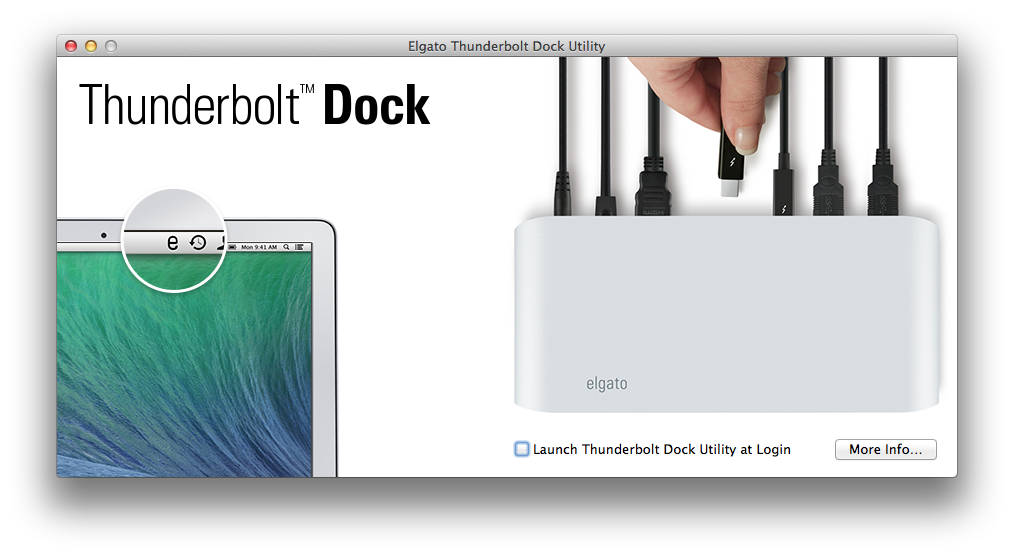

如果选择 偏好设置...选项,则将打开 Elgato Thunderbolt™ Dock Utility的主窗口


在这里您可以选择 在登录时启动 Thunderbolt™ Dock Utility。
