This guide covers how to use the Touch Strip on Stream Deck +.
Stream Deck + features a 108 x 14 mm /4.2 x 0.5 in LCD touch panel to simplify your workflow.
The resolution of the touch strip is 800 x 100 pixels.
Touch Strip can be used in multiple ways.
Tap Functionality
When an action is assigned to the dial, the corresponding Touch Strip segment can offer additional functionality by tapping it.
Example: With a Control Center Adjust Brightness action assigned to the dial, tapping the touch strip will turn the selected light on or off.
Tap-and-Hold
When an action is assigned to the dial, the corresponding Touch Strip segment can offer additional functionality by tapping it.
Example: With a Camera Hub Zoom action assigned to the dial, tapping and holding the touch strip will restore the default zoom setting which is saved to the Facecam or Facecam Pro.
Swipe
Move a finger quickly across the touch strip left or right to change between pages.
Two or more pages are required for swiping.

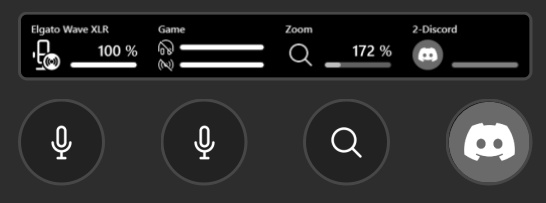

Customize Touch Strip
The Touch Strip can be customized in three layers.
1 - Dial Action icon
2 - Dial Background
3 - Touch Strip Background
To customize the Background, right-click on the Touch Strip in the Stream Deck software.
