Elgato Wave XLR — Phantom Power (48V)

Wave XLR is able to provide 48V of Phantom power for using condenser microphones.



When To Use Phantom Power



Phantom power is required for using condenser microphones with Wave XLR.

Phantom power is not required for dynamic microphones and should be disabled when using a dynamic microphone



Can Phantom Power Damage Non-Condenser Microphones?



Modern dynamic microphones include circuitry designed to prevent damage from phantom power if it is accidentally turned on. However, this will not guarantee that damage cannot occur.

It is recommended to turn off phantom power when using a dynamic microphone with Wave XLR



How To Enable Or Disable Phantom Power

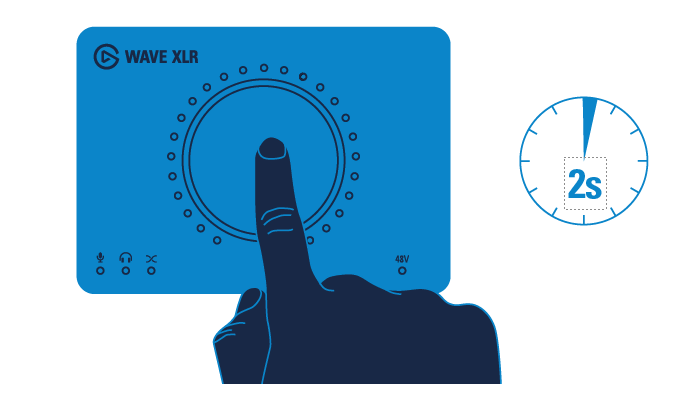

Control Dial on Wave XLR

Press and hold the control dial for 2 seconds to toggle Phantom Power on or off.

The status is indicated by the 48V LED.

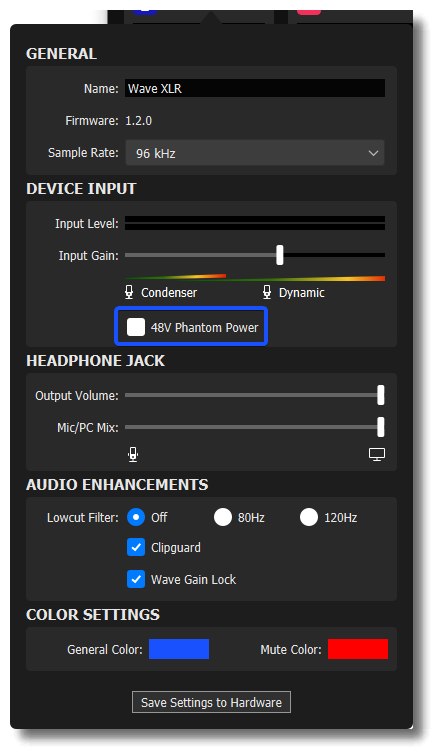

Wave Link Software

Open the Wave XLR settings and click on the 48V Phantom Power checkbox to toggle it on or off.
